GIGABite™ Data Cables

Data Bus, High Speed Data, & Ethernet Cables & Avionics Cable Assemblies

GIGAFLIGHT offers high speed data communications cable solutions for Ethernet Communications Backbone, In-Flight Entertainment (IFE), Ground Vehicle Bus, Cabin Management and Avionics Networks. We also offer dependable data bus & ethernet connectors designed to perform in demanding environments.

The GIGABite range of products includes 1 pair, 2 pair, 4 pair, and Quadrax 100 Ω shielded Ethernet cables for high-speed data up to 10G performance. GIGABite aerospace data cables are flexible, lightweight, low-loss, high temperature and laser markable with multiple color options, providing solutions for demanding high-speed data requirements!

• Ethernet communications backbone
• Avionics networks
• Digital backbone for ground vehicles
• Cabin management
• IFE
• CAT6a 10Gbs ethernet
• ARINC 429 Data Bus
• ARINC 664 10/100 Base T Ethernet
• Aircraft grade category 5 ethernet cable
• 1553 Data Bus
• Garmin approved CAN Bus
• Quadrax
• USB 2.0
• HDMI

Quick Links to Our GIGABite™ Cables

Additional Jacket Colors for Special Applications

If your aerospace data cable application requires a specific jacket color, GIGAFLIGHT can do that. Contact us for cable availability.

Quick Reference Data Bus Part Numbering Guide

DATA BUS PART NUMBER GUIDE

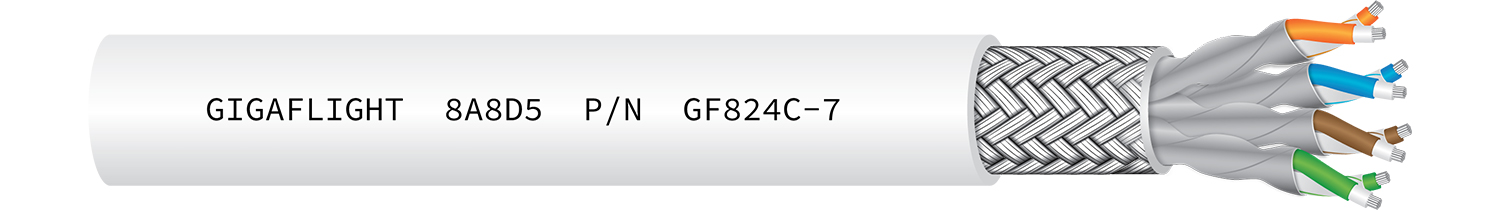

Ethernet 4 Pair

CAT5E - Ethernet

GF824A-5E

---

Additional Jacket Colors in stock for special applications

P/N: GF824A-5E-1WhiteLaser Markable

AWG:24

Jacket Outer Diameter in (mm):0.27 (6.86)

Weight lbs/1000ft (kg/1000m):45 (66.97)

Cable Details  Connectors  Burn Test  ASTM E595 Results

---

GF824A-5E-1

---

Additional Jacket Colors in stock for special applications

P/N: GF824A-5ETranslucent BlueStandard

AWG:24

Jacket Outer Diameter in (mm):0.248 (6.29)

Weight lbs/1000ft (kg/1000m):43.8 (65.18)

Cable Details  Connectors  Burn Test

---

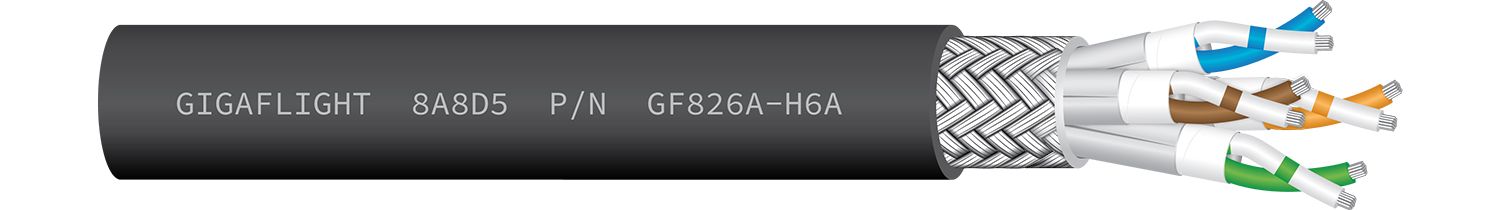

CAT6A - 10G Base-T Ethernet

GF100-24CAT6A

AWG:24

Jacket Outer Diameter in (mm):0.28 (7.11)

Weight lbs/1000ft (kg/1000m):47 (69.9)

Cable Details  Connectors  Burn Test

---

GF824A-6A

AWG:24

Jacket Outer Diameter in (mm):0.26 (6.6)

Weight lbs/1000ft (kg/1000m):44 (65.48)

Cable Details  Connectors  Burn Test

---

GF824B-6A

AWG:24

Jacket Outer Diameter in (mm):0.262 (6.65)

Weight lbs/1000ft (kg/1000m):47.5 (70.69)

Cable Details  Connectors  Burn Test

---

GF824E-6A

AWG:24

Jacket Outer Diameter in (mm):0.262 (6.65)

Weight lbs/1000ft (kg/1000m):50 (74.41)

Cable Details  Connectors  Burn Test

---

GF822D-6AM

AWG:22

Jacket Outer Diameter in (mm):0.32 (8.13)

Weight lbs/1000ft (kg/1000m):60 (89.29)

Cable Details  Connectors  Burn Test

---

GF826B-6A

AWG:26

Jacket Outer Diameter in (mm):0.235 (5.97)

Weight lbs/1000ft (kg/1000m):37.9 (56.4)

Cable Details  Connectors  Burn Test

---

GF828C-6A

AWG:28

Jacket Outer Diameter in (mm):0.222 (5.64)

Weight lbs/1000ft (kg/1000m):25 (37.2)

Cable Details

---

Ethernet 2 Pair

CAT5 - Ethernet

GF100T-24CAT5

AWG:24

Jacket Outer Diameter in (mm):0.234 (5.84)

Weight lbs/1000ft (kg/1000m):30 (44.64)

Cable Details  Connectors  Burn Test

---

CAT5E - Ethernet

GF424A-5E

AWG:24

Jacket Outer Diameter in (mm):0.21 (5.33)

Weight lbs/1000ft (kg/1000m):33 (49.11)

Cable Details  Connectors  Burn Test

---

GF424A-5E-1

AWG:24

Jacket Outer Diameter in (mm):0.20 (5.08)

Weight lbs/1000ft (kg/1000m):29 (43.16)

Cable Details  Connectors  Burn Test

---

GF422A-5E

AWG:22

Jacket Outer Diameter in (mm):0.3 (7.62)

Weight lbs/1000ft (kg/1000m):37 (55.06)

Cable Details  Burn Test

---

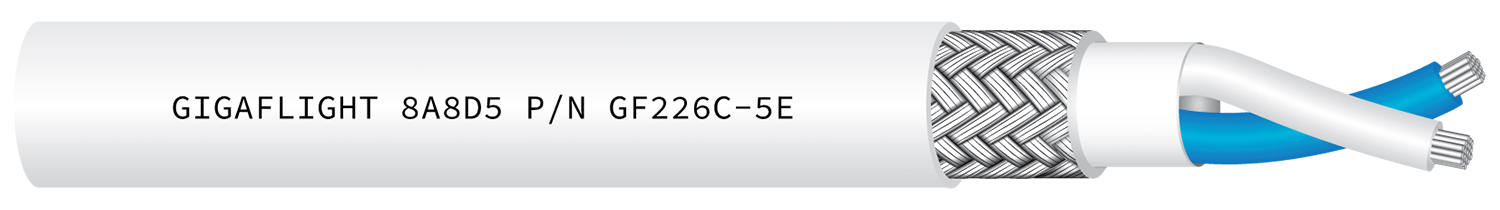

Single Pair, 100Ω

CAT5E - Ethernet

GF228A-5E

AWG:28

Jacket Outer Diameter in (mm):0.114 (2.90)

Weight lbs/1000ft (kg/1000m):8.50 (12.65)

Cable Details  Burn Test

---

GF224A-5E

AWG:24

Jacket Outer Diameter in (mm):0.16 (4.06)

Weight lbs/1000ft (kg/1000m):21 (31.25)

Cable Details  Burn Test

---

GF100-24TWIN-1

AWG:24

Jacket Outer Diameter in (mm):0.142 (3.56)

Weight lbs/1000ft (kg/1000m):23 (34.23)

Cable Details  Burn Test

---

GF100-22TWIN

AWG:22

Jacket Outer Diameter in (mm):0.19 (4.83)

Weight lbs/1000ft (kg/1000m):23 (34.23)

Cable Details  Burn Test

---

Single Pair, No Shield

Twinax 100 Ohm

GF100-24TPNS

AWG:24

Jacket Outer Diameter in (mm):0.10 (2.54)

Weight lbs/1000ft (kg/1000m):7 (10.42)

Cable Details  Burn Test

---

Quadrax Ethernet

Quadrax 10/100Base-T ARINC 664

GF100-22QUAD

AWG:22

Jacket Outer Diameter in (mm):0.19 (4.83)

Weight lbs/1000ft (kg/1000m):34.5 (51.34)

Cable Details  Connectors  Burn Test

---

GF100-24QUAD

AWG:24

Jacket Outer Diameter in (mm):0.16 (4.06)

Weight lbs/1000ft (kg/1000m):22 (32.74)

Cable Details  Connectors  Burn Test

---

GF424E-QUAD

AWG:24

Jacket Outer Diameter in (mm):0.16 (4.06)

Weight lbs/1000ft (kg/1000m):22 (32.74)

Cable Details  Burn Test

---

Quadrax 10/100Base-T

GF426B-QUAD

AWG:26

Jacket Outer Diameter in (mm):0.136 (3.45)

Weight lbs/1000ft (kg/1000m):18 (26.79)

Cable Details  Burn Test

---

GF428E-QUAD

AWG:28

Jacket Outer Diameter in (mm):0.107 (2.72)

Weight lbs/1000ft (kg/1000m):12.4 (18.5)

Cable Details  Burn Test

---

POE Cables

CAT5E - Power over Ethernet

GF52422D-POE

AWG:24

Jacket Outer Diameter in (mm):0.21 (5.33)

Weight lbs/1000ft (kg/1000m):38 (56.55)

Cable Details  Burn Test

---

GF62422D-POE

AWG:24

Jacket Outer Diameter in (mm):0.21 (5.33)

Weight lbs/1000ft (kg/1000m):41 (61.01)

Cable Details  Burn Test

---

Data Bus/CAN Bus

ARINC 429 Data Bus

GF70-24A429

---

Additional Jacket Colors in stock for special applications

P/N: GF70-24A429-3OrangeFlight Test Data

AWG:24

Jacket Outer Diameter in (mm):0.14 (3.56)

Weight lbs/1000ft (kg/1000m):14 (20.83)

Cable Details  Burn Test

---

GF70-22A429

AWG:22

Jacket Outer Diameter in (mm):0.16 (4.06)

Weight lbs/1000ft (kg/1000m):16.5 (24.55)

Cable Details  Burn Test

---

1553 Data Bus Markable

GF77-241553

---

Additional Jacket Colors in stock for special applications

P/N: GF77-241553-3OrangeFlight Test Data

AWG:24

Jacket Outer Diameter in (mm):0.125 (3.175)

Weight lbs/1000ft (kg/1000m):14 (20.83)

Cable Details  Burn Test

---

78 Ohm Quadraxial

GF222A-TX78

AWG:22

Jacket Outer Diameter in (mm):0.23 (5.84)

Weight lbs/1000ft (kg/1000m):50 (74.41)

Cable Details  Burn Test

---

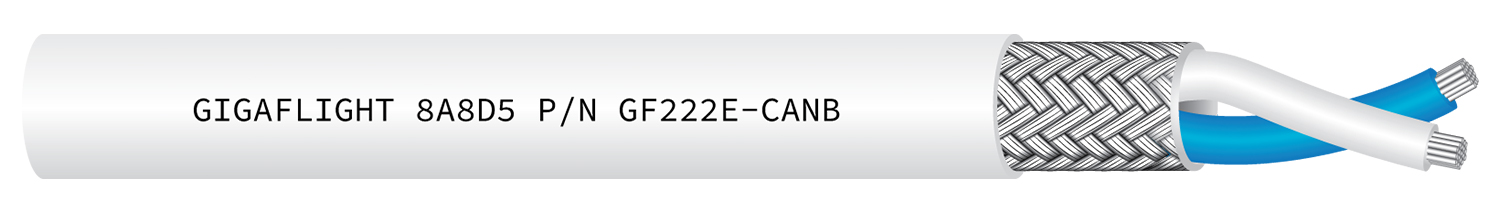

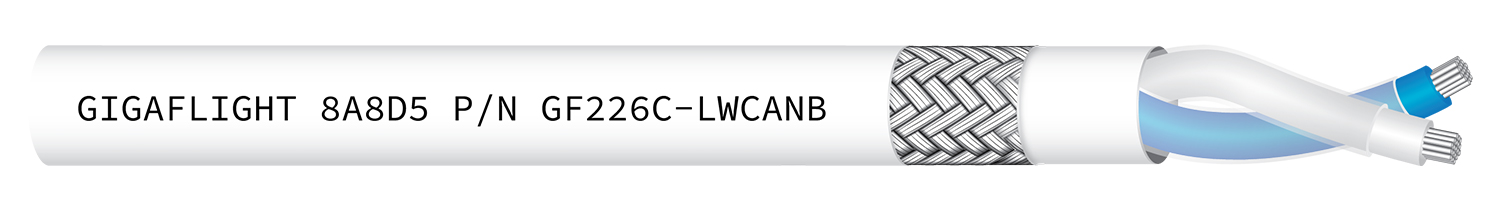

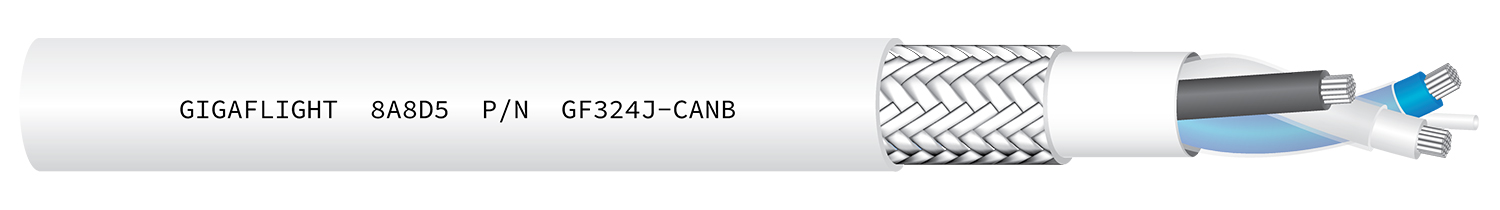

CAN Bus 120 Ohm

GF120T-24CANB

AWG:24

Jacket Outer Diameter in (mm):0.142 (3.56)

Weight lbs/1000ft (kg/1000m):17.5 (26.04)

Cable Details  Burn Test  Stripping Instructions  ASTM E595 Results

---

GF120S-26CANB

AWG:26

Jacket Outer Diameter in (mm):0.13 (3.30)

Weight lbs/1000ft (kg/1000m):15 (22.32)

Cable Details  Burn Test

---

ASCB-D Data Bus 125 Ohm

GF224B-ASCBD

AWG:24

Jacket Outer Diameter in (mm):0.2 (5.08)

Weight lbs/1000ft (kg/1000m):23 (34.23)

Cable Details  Burn Test  GF-Dual-Wall-Cable-Prep

---

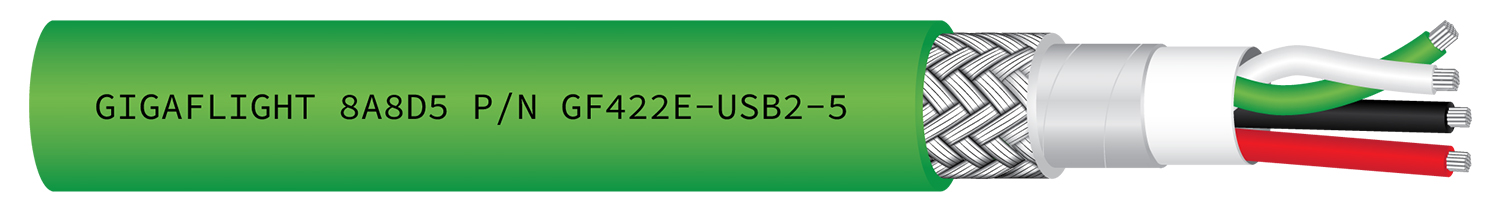

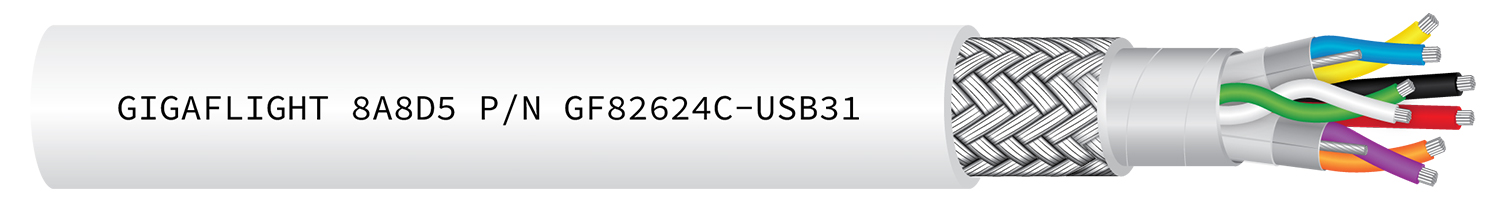

USB Cables

USB 2.0 Data

GF2428-USB2FX

AWG:28

Jacket Outer Diameter in (mm):0.126 (3.2)

Weight lbs/1000ft (kg/1000m):15 (22.32)

Cable Details  Burn Test

---

GF90-24USB2

AWG:24

Jacket Outer Diameter in (mm):0.18 (4.57)

Weight lbs/1000ft (kg/1000m):23 (34.23)

Cable Details  Connectors  Burn Test

---
