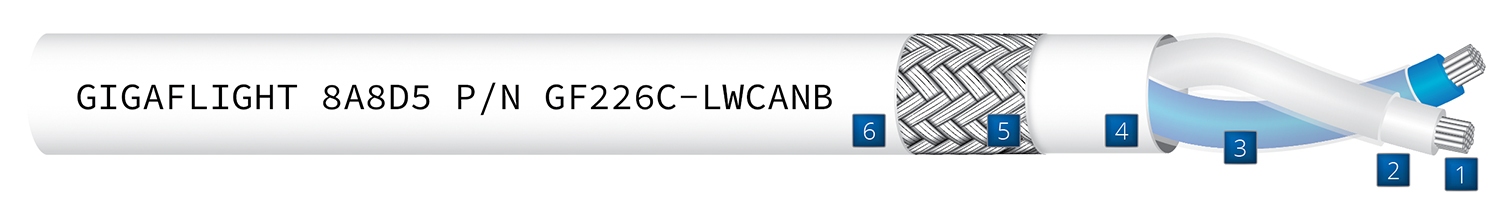

Conductors: 26 AWG Stranded, Silver-plated HSCA
Inner Insulation: Solid, High-temp Fluoropolymer
1. Color Code: Blue, White
Outer Insulation: Foamed, High-temp Fluoropolymer
1. Color Code: Natural, Natural
Binder: PTFE Tape
Shield: 38 AWG SPC Braid, 62% Min Coverage
Jacket: White, Laser-markable Tefzel

GF226C-LWCANB LIGHTWEIGHT, LASER-MARKABLE 26 AWG CAN BUS CABLE

Download Print PDF Cross Reference

GIVING YOU LIGHTWEIGHT OPTIONS

The GF226C-LWCANB is an ultra-lightweight, laser-markable CAN Bus cable designed as a suitable alternative to Lynxeo’s EN-3375-009C.

As a 120Ω Twinax cable, achieving 120 ohms between conductors requires thicker insulation, which creates contact extraction problems. When insulation OD exceeds contact OD, termination becomes difficult.

GIGAFLIGHT solved this through innovative dual-wall insulation design. The first layer, a thin-wall, high-temp fluoropolymer, maintains an OD smaller than the contact size for easy extraction. The second layer, foamed fluoropolymer, provides wire separation while maintaining precise 120Ω impedance control throughout the cable. During termination, a section of foam insulation is selectively removed to provide contact access.

The dual-wall approach delivers an additional benefit: the solid inner insulation eliminates insulation creep back, a common problem with all-foam designs.

STRIPPING INSTRUCTIONS

Contact/RFQ

Environmental & Mechanical Properties

Outer Diameter in (mm):0.142 (3.61)

Weight lbs/1000ft (kg/1000m):10.8 (16.1)

Operating Temperature:-55°C to +200°C

Minimum Bend Radius in (mm):0.7 (17.78)

Electrical Properties

Impedence Ω:120

Capacitance pF/ft (m):13.7 (44.95)

VOP:77%

DC Resistance Ω/1000ft (m):44.8 (146.98)

Dielectric Voltage Rating kV RMS:0.9

Attenuation (+25°C)

Frequency MHz dB/100 ft (m)

10.9 (2.9)

62.0 (6.6)

102.7 (8.9)

1007.4 (24.3)

Additional Jacket Colors for Special Applications

The jacket color depicted in the cable image above is a stock item. If your project requires a color for a specific application, GIGAFLIGHT can do that. Please Contact us for availability.

View Color & Application Table

ColorApplication

BlackSecure Data

BlueStandard

Translucent BlueStandard

Red Secure Data

Olive Drab Covert Subdued

OrangeFlight Test Data

WhiteLaser Markable

All values nominal unless noted.

GigaFlight’s aerospace cables are designed to be resistant to Skydrol, will meet requirements of RoHS & REACH, & meets Federal Aviation Regulations 14 CFR part 25.869 (a)(4), Amendment 25-113, Appendix F part I (a)(3).

Compare GIGAFLIGHT Cables

GIGAFLIGHT P/NPIC P/NCarlisle P/NOther P/N

GF226C-LWCANB -- -- EN-3375-009C**

*Identical alternative: GIGAFLIGHT’s product is identical to another as far as materials, physical, and electrical characteristics.

**Suitable alternative: GIGAFLIGHT’s product is comparable with slight variances. Please contact us to discuss your application.
