50 Ω Coaxial & Triaxial Cables & Avionics Cable Assemblies

GIGALite 50 ohm triax cables and cable assemblies are used in many major avionic / aircraft / aerospace systems and meet FAA Flammability requirements.

  • 50Ω Coaxial: Flexible, lightweight, low loss, high-temperature cables. Advanced aerospace cables designed specifically for aircraft and other such harsh environments. Excellent protection against EMI. Laser markable and color option jackets. All cables are Skydrol resistant, will meet requirements of RoHS & REACH and meets the FAA flammability requirements of FAR.
  • 50Ω Triaxial: Flexible, lightweight, low loss, high-temperature cables. Advanced aerospace cables designed specifically for aircraft systems and other such harsh environs. Excellent protection against EMI. Laser markable and color option jackets.
  • Markets & Applications: Military, Aerospace and other Harsh Environments: Communications, TCAS and Navigation, SATCOM, Cellular, GPS, Marker Beacon, Mode S, ADS-B

GIGAFLIGHT also offers 50 ohm coax connectors designed to perform in demanding environments.

Find Gigaflight 50 ohm triax cable and assemblies to xref with Pic or Carlisle

Additional Jacket Colors for Special Applications

If your 50 ohm coaxial low-loss cable application requires a specific jacket color, GIGAFLIGHT can do that. Contact us for cable availability.

View Color & Application Table
ColorApplication
ClearStandard
Translucent BlueStandard
WhiteLaser Markable

50 Ohm RF Coaxial

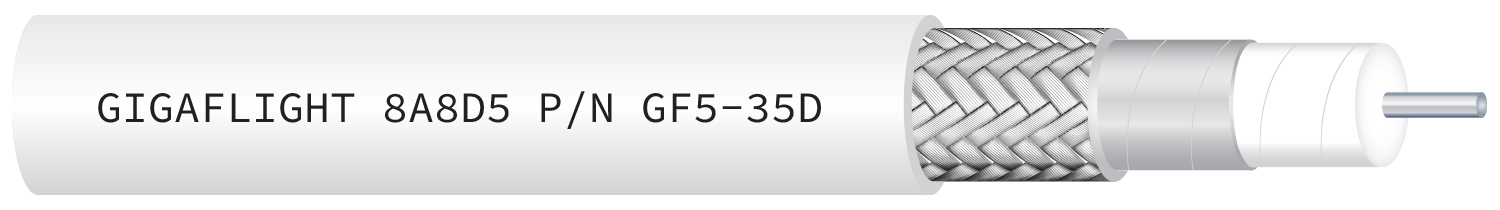

GF5-35D

Drawing of gf5-35d-cable
AWG:10
Insertion Loss @ 1GHz dB/100ft (dB/100m):3.5 (11.5)
Jacket Outer Diameter in (mm):0.345 (8.76)
Weight lbs/1000ft (kg/1000m):71 (105.66)
Cable Details  Connectors  Burn Test

GF5-36T

GF5-36T LOW-LOSS HIGH-PERFORMANCE COAX

Additional Jacket Colors in stock for special applications

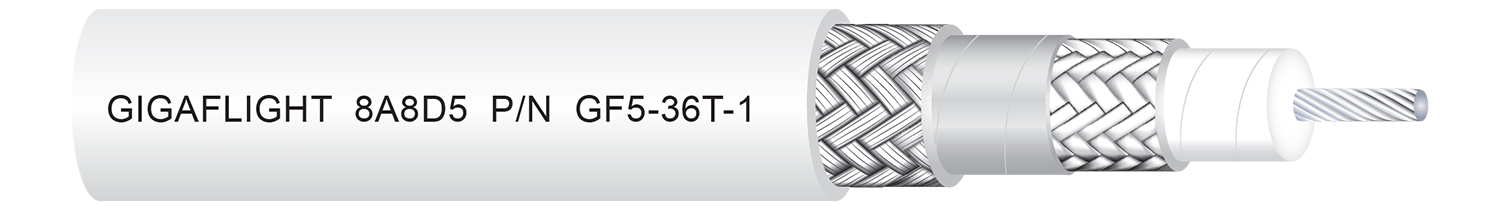

P/N: GF5-36T-1 (Datasheet)WhiteLaser Markable
AWG:8
Insertion Loss @ 1GHz dB/100ft (dB/100m):3.6 (11.81)
Jacket Outer Diameter in (mm):0.435 (11.05)
Weight lbs/1000ft (kg/1000m):170 (252.99)
Cable Details  Connectors  Burn Test

GF5-56T

GF5-56T LIghtweight High-Performance 50 Ohm Coax
AWG:12
Insertion Loss @ 1GHz dB/100ft (dB/100m):5.6 (18.4)
Jacket Outer Diameter in (mm):0.317 (8.05)
Weight lbs/1000ft (kg/1000m):86 (127.98)
Cable Details  Connectors  Burn Test

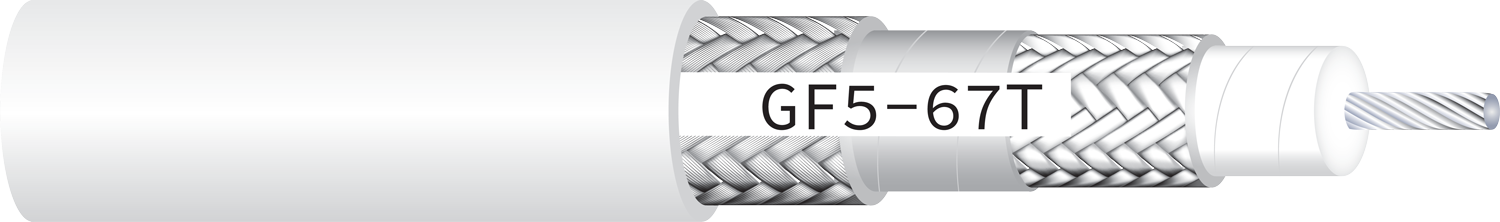

GF5-67T

Drawing of gf5-67t-cable
AWG:14
Insertion Loss @ 1GHz dB/100ft (dB/100m):6.7 (21.9)
Jacket Outer Diameter in (mm):0.248 (6.29)
Weight lbs/1000ft (kg/1000m):57 (84.83)
Cable Details  Connectors  Burn Test

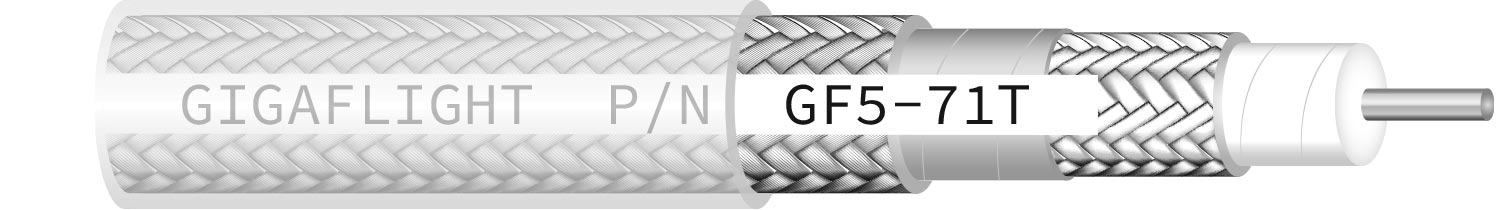

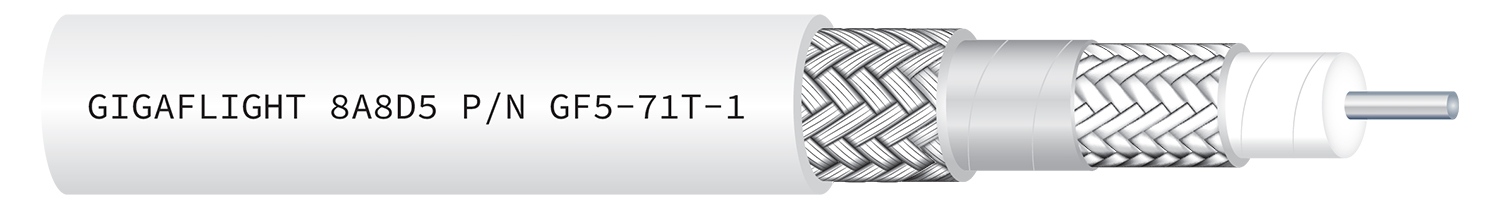

GF5-71T

GF5-71T Low-Loss High-Performance 50 Ohm Coax

Additional Jacket Colors in stock for special applications

P/N: GF5-71T-1 (Datasheet)WhiteLaser Markable
AWG:15
Insertion Loss @ 1GHz dB/100ft (dB/100m):7.1 (23.3)
Jacket Outer Diameter in (mm):0.229 (5.82)
Weight lbs/1000ft (kg/1000m):50 (74.41)
Cable Details  Connectors  Burn Test

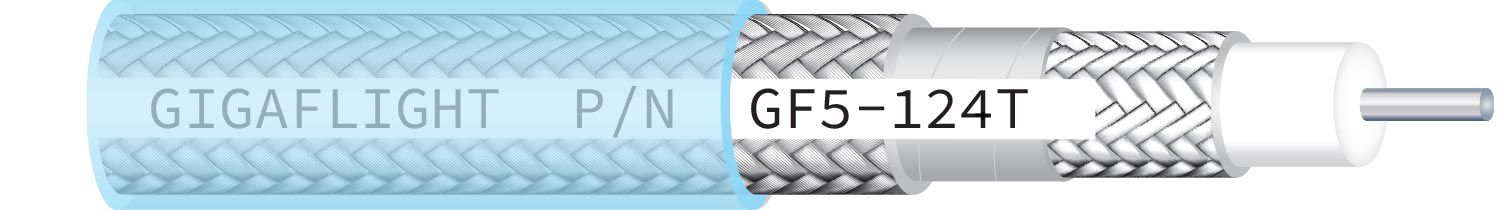

GF5-124T

GF5-124T Low-Loss High-Performance 50 Ohm Coax

Additional Jacket Colors in stock for special applications

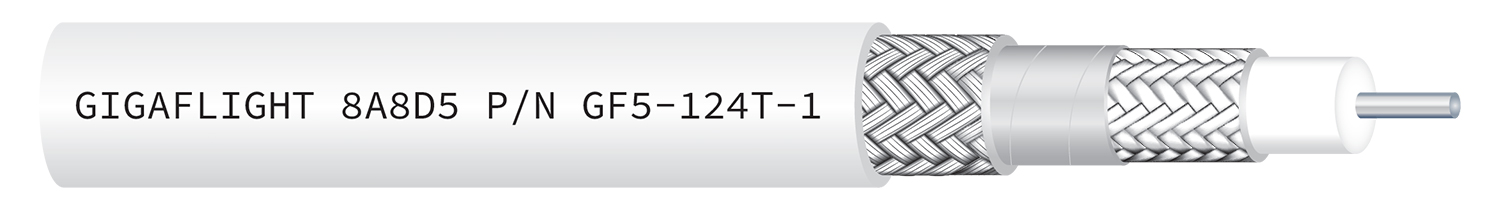

P/N: GF5-124T-1 (Datasheet)WhiteLaser Markable
AWG:19
Insertion Loss @ 1GHz dB/100ft (dB/100m):12.2 (40.0)
Jacket Outer Diameter in (mm):0.195 (4.95)
Weight lbs/1000ft (kg/1000m):40 (59.53)
Cable Details  Connectors  Burn Test

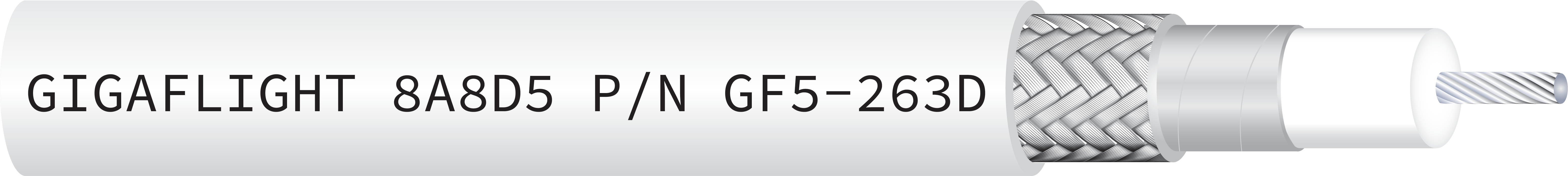

GF5-263D

Drawing of gf5-263d-cable
AWG:26
Insertion Loss @ 1GHz dB/100ft (dB/100m):26.3 (86.3)
Jacket Outer Diameter in (mm):0.1 (2.54)
Weight lbs/1000ft (kg/1000m):10 (14.88)
Cable Details  Connectors  Burn Test
