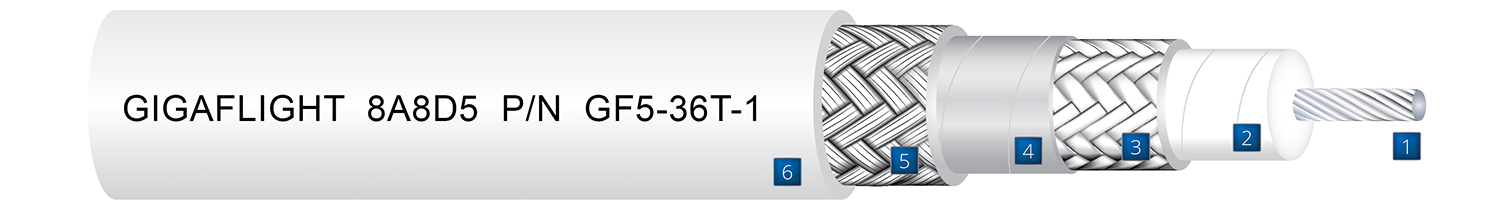

- Center Conductor: 8 AWG Stranded, Silver-plated Copper
- Dielectric: Low-density PTFE
- Inner Shield: Silver-plated Copper Flat Strip Braid
- Interlayer: Composite Foil
- Outer Shield: 36 AWG Silver-plated Copper Braid
- Jacket: White, Laser-markable Tefzel
GF5-36T-1 LOW-LOSS HIGH-PERFORMANCE COAX
GIVING YOU OPTIONS
GIGAFLIGHT’s 50Ω coaxial cable, GF5-36T-1, is a next-gen alternative to our own GF5-36T, Carlisle’s 310801 and PIC’s S22089. Engineered with comparable materials and matching electrical specifications, the GF5-36T-1 streamlines design approvals for your projects. This cable is ideal for applications where minimizing system loss is critical and pairs seamlessly with GF5-36T connectors, Carlisle XXX022 connectors or PIC 194XX series alternatives.
The GF5-36T-1 features a lightweight, laser-markable white jacket, offering a smaller outer diameter, tighter bend radius, and up to 10% weight savings compared to the GF5-36T. These benefits make it an excellent choice for weight-sensitive systems. Learn more about the GF5-36T-1 as an alternative here.
Contact/RFQEnvironmental & Mechanical Properties
Electrical Properties
Attenuation (+25°C)
Additional Jacket Colors for Special Applications
All values nominal unless noted.
All tests performed in accordance with MIL-DTL-17
GigaFlight’s aerospace cables are designed to be resistant to Skydrol, will meet requirements of RoHS & REACH, & meets Federal Aviation Regulations 14 CFR part 25.869 (a)(4), Appendix F part I (a)(3).
Compare GIGAFLIGHT Cables
*Identical alternative: GIGAFLIGHT’s product is identical to another as far as materials, physical, and electrical characteristics.
**Suitable alternative: GIGAFLIGHT’s product is comparable with slight variances. Please contact us to discuss your application.
