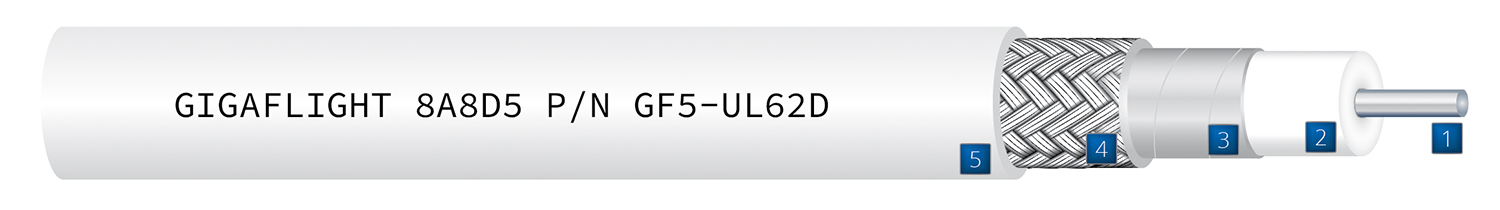

Center Conductor: 14 AWG Solid, Silver-plated Copper Clad Aluminum
Dielectric: Low-density PTFE
Inner Shield: Silver-plated Copper Flat Spiral Wrap
Outer Shield: 34 AWG Silver-plated Copper Clad Aluminum Braid, 90% Coverage
Jacket: White, Laser-markable ETFE

GF5-UL62D LOW-LOSS HIGH-PERFORMANCE XLITE COAX

Download Print PDF Connectors Cross Reference

GIVING YOU LIGHTWEIGHT OPTIONS

GIGAFLIGHT’s GF5-UL62D XLite coax cable is a suitable alternative for UH67163. Designed with high-end materials, this exceptionally lightweight 50 ohm coaxial cable delivers low loss performance while providing the shielding effectiveness necessary for today’s advancing technologies. The combination of a silver-plated copper flat spiral wrap inner shield and silver-plated, copper clad aluminum (SPCCA) braid provides ample protection without adding unnecessary weight.

Contact/RFQ

Environmental & Mechanical Properties

Outer Diameter in (mm):0.227 (5.77)

Weight lbs/1000ft (kg/1000m):34 (50.59)

Operating Temperature:-65ºC to +155ºC

Minimum Bend Radius in (mm):1.14 (28.96)

Electrical Properties

Impedence Ω:50

Capacitance pF/ft (m):24.7 (81.04)

Time Delay ns/ft (m):1.22 (4.0)

VOP:83%

DC Resistance Ω/1000ft (m):4.1 (13.45)

Attenuation (+25°C)

Frequency MHz dB/100 ft (m)

400 MHz3.9 (12.79)

1000 MHz6.2 (20.34)

1600 MHz7.9 (25.92)

5000 MHz14.2 (46.59)

Additional Jacket Colors for Special Applications

The jacket color depicted in the cable image above is a stock item. If your project requires a color for a specific application, GIGAFLIGHT can do that. Please Contact us for availability.

View Color & Application Table

ColorApplication

ClearStandard

Translucent BlueStandard

WhiteLaser Markable

All values nominal unless noted.

All tests performed in accordance with MIL-DTL-17
GigaFlight’s aerospace cables are designed to be resistant to Skydrol, will meet requirements of RoHS & REACH, & meets Federal Aviation Regulations 14 CFR part 25.869 (a)(4), Appendix F part I (a)(3).

GF5-UL62D Connectors

TNC

TNC Straight

GF5-TS62D

Compare GIGAFLIGHT Cables

GIGAFLIGHT P/NPIC P/NCarlisle P/NOther P/N

GF5-UL62D UH67163** -- --

*Identical alternative: GIGAFLIGHT’s product is identical to another as far as materials, physical, and electrical characteristics.

**Suitable alternative: GIGAFLIGHT’s product is comparable with slight variances. Please contact us to discuss your application.
