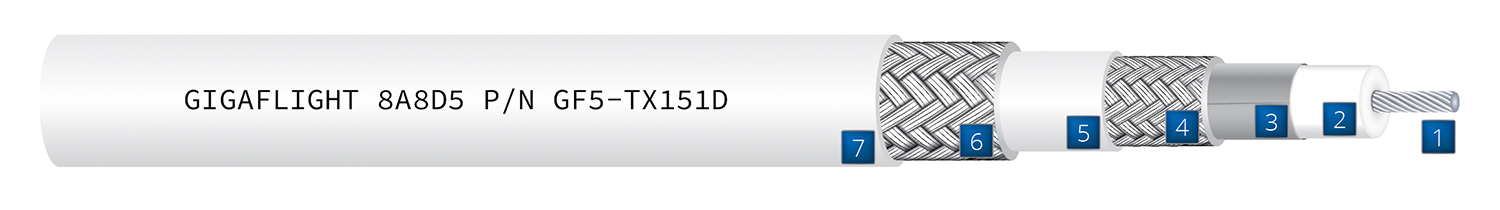

- Center Conductor: 21 AWG Stranded, Silver-plated Copper
- Dielectric: Foamed, High-temp Fluoropolymer
- Inner Shield: Composite Foil
- Outer Shield: 38 AWG Tin-plated Copper Braid
- Inner Jacket: White, Laser-markable ETFE
- Triax Shield: 38 AWG Tin-plated Copper Braid
- Outer Jacket: White, Laser-markable ETFE
GF5-TX151D LOW-LOSS HIGH-PERFORMANCE TRIAX
HIGH PERFORMANCE TRIAXIAL CABLE
Designed to handle environments sensitive to EMI, the 50-ohm Triaxial cable GF5-TX151D, an identical alternative to L8620TX, is equipped with a stranded, silver-plated copper center conductor, dual tin-plated copper braid shields, and a durable, laser-markable ETFE jacket. This cable is perfect for applications like radar systems, where protection against RFI and noise is critical. With its additional outer braid shield, it minimizes noise pick-up and improves the signal-to-noise ratio. For the best results, use triaxial connectors that maintain the isolation of both shields.
Contact/RFQ
Environmental & Mechanical Properties
Electrical Properties
Attenuation (+25°C)
Additional Jacket Colors for Special Applications
The jacket color depicted in the cable image above is a stock item. If your project requires a color for a specific application, GIGAFLIGHT can do that. Please Contact us for availability.
View Color & Application TableAll values nominal unless noted.
All tests performed in accordance with MIL-DTL-17
GigaFlight’s aerospace cables are designed to be resistant to Skydrol, will meet requirements of RoHS & REACH, & meets Federal Aviation Regulations 14 CFR part 25.869 (a)(4), Appendix F part I (a)(3).
Compare GIGAFLIGHT Cables
*Identical alternative: GIGAFLIGHT’s product is identical to another as far as materials, physical, and electrical characteristics.
**Suitable alternative: GIGAFLIGHT’s product is comparable with slight variances. Please contact us to discuss your application.
