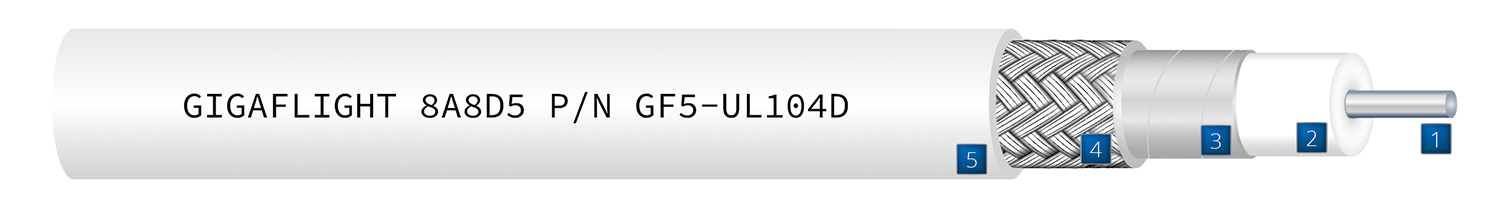

- Center Conductor: 19 AWG Solid, Silver-plated Copper Clad Steel
- Dielectric: Low-density PTFE
- Inner Shield: Silver-plated Copper Flat Spiral Wrap
- Outer Shield: 36 AWG Silver-plated Copper Clad Aluminum Braid, 90% Coverage
- Jacket: White, Laser-markable ETFE
GF5-UL104D LOW-LOSS HIGH-PERFORMANCE XLITE COAX
GIVING YOU LIGHTWEIGHT OPTIONS
GIGAFLIGHT’s GF5-UL104D XLite coax cable is a suitable alternative for UH44193. Designed with high-end materials, this exceptionally lightweight 50 ohm coaxial cable delivers low loss performance while maintaining the shielding effectiveness necessary for today’s advancing technologies. The combination of a silver-plated copper flat spiral wrap inner shield and silver-plated, copper clad aluminum (SPCCA) braid provides ample protection without adding unnecessary weight.
Environmental & Mechanical Properties
Electrical Properties
Attenuation (+25°C)
Additional Jacket Colors for Special Applications
The jacket color depicted in the cable image above is a stock item. If your project requires a color for a specific application, GIGAFLIGHT can do that. Please Contact us for availability.
View Color & Application TableAll values nominal unless noted.
All tests performed in accordance with MIL-DTL-17
GigaFlight’s aerospace cables are designed to be resistant to Skydrol, will meet requirements of RoHS & REACH, & meets Federal Aviation Regulations 14 CFR part 25.869 (a)(4), Appendix F part I (a)(3).
GF5-UL104D Connectors
TNC
TNC Straight
Compare GIGAFLIGHT Cables
*Identical alternative: GIGAFLIGHT’s product is identical to another as far as materials, physical, and electrical characteristics.
**Suitable alternative: GIGAFLIGHT’s product is comparable with slight variances. Please contact us to discuss your application.
