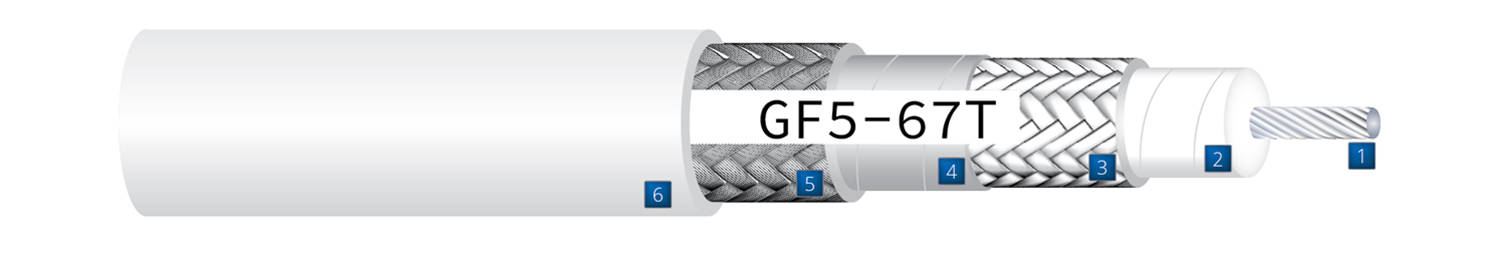

1. Center Conductor: 14 AWG Stranded Silver-plated Copper
  2. Dielectric: Low-density PTFE
  3. Inner Shield: SPC Woven Strip
  4. Interlayer: Aluminum Foil
  5. Outer Shield: SPC Round Braid
  6. Jacket: White, Laser-markable Fluoropolymer

GF5-67T LOW-LOSS HIGH-PERFORMANCE COAX

GIVING YOU OPTIONS

GIGAFLIGHT’s 50 ohm coax cable, GF5-67T is a low-loss, high-performance cable that is a suitable, electrical alternative to PIC’s S33141. To save time in assembly builds and reduce cable weight—14% lighter than the S33141— GIGAFLIGHT uses a white, laser-markable Fluoropolymer jacket.

All of our connectors designed for the GF5-67T are interchangeable with PIC’s 1903XX series connectors. For more information, please contact GIGAFLIGHT today.

Environmental & Mechanical Properties

Outer Diameter in (mm):0.248 (6.299)
Weight lbs/1000ft (kg/1000m):57 (84.83)
Operating Temperature:-55°C to +200°C
Minimum Bend Radius in (mm):1.25 (31.75)

Electrical Properties

Impedence Ω:50
Capacitance pF/ft (m):25 (82.02)
Time Delay ns/ft (m):1.26 (4.13)
VOP:80.5%
DC Resistance Ω/1000ft (m):2.9 (9.51)
Shield Effectiveness:>90 dB

Attenuation (+25°C)

Frequency MHz dB/100 ft (m)
1502.5 (8.2)
10006.7 (21.9)
16008.6 (28.2)
240010.5 (34.5)
500015.5 (50.9)

Additional Jacket Colors for Special Applications

If your project requires a specific jacket color, GIGAFLIGHT can do that. Contact us for cable availability.

View Color & Application Table

All values nominal unless noted.

All tests performed in accordance with MIL-DTL-17

GigaFlight’s aerospace cables are designed to be resistant to Skydrol, will meet requirements of RoHS & REACH, & meets Federal Aviation Regulations 14 CFR part 25.869 (a)(4), Appendix F part I (a)(3).

GF5-67T Connectors

TNC

TNC Straight
TNC 90°
TNC Bulkhead

BNC

BNC Straight
GF5-BS67T
BNC 90°
GF5-BA67T

N

N Straight
N 90°
GF5-NA67T
N Bulkhead

SMA

SMA Straight
SMA 90°
SMA Bulkhead

Compare GIGAFLIGHT Cables

GIGAFLIGHT P/NPIC P/NCarlisle P/N
GF5-67T S33141** --

*Drop-in replacement: GIGAFLIGHT’s product is identical to another as far as materials, physical, and electrical characteristics.

**Suitable alternative: GIGAFLIGHT’s product is comparable with slight variances. Please contact us to discuss your application.
