GF826A-H6A Cable Brochure View Cable Construction

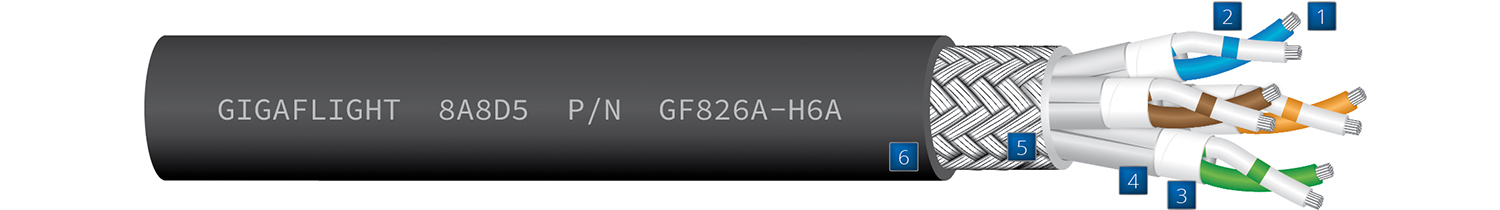

  1. Conductor: 26 AWG Stranded, Silver-plated Copper
  2. Insulation: Solid, High-temp Fluoropolymer
    1. Color Codes: Pair 1: Blue, White/Blue; Pair 2: Orange, White/Orange
    2. Pair 3: Green, White/Green; Pair 4: Brown, White/Brown
  3. Twin 2/C Tape: PTFE Tape
  4. Pair Shield: Composite Foil
  5. Shield: 38 AWG Silver-plated Copper Braid (92% Coverage)
  6. Jacket: Black, Low Smoke Zero Halogen (LSZH) Hytrel

GF826A-H6A CATEGORY 6A LSZH ETHERNET CABLE

Download Print PDF  Burn Test  Cross Reference

CAT6A 10Gb ETHERNET CABLE

The GF826A-H6A delivers 10 Gigabit performance in accordance with ANSI/TIA 568 Category 6A standards up to 214ft (65.22m) and serves as a suitable electrical alternative to Axon P542810. Featuring a black Low Smoke Zero Halogen (LSZH) Hytrel jacket, this cable is ideal for applications where fire safety is critical, such as avionics and control systems.

This product is sold in bulk or as CAT6A tested assemblies, please contact GIGAFLIGHT for more information.

Contact/RFQ

Environmental & Mechanical Properties

Outer Diameter in (mm):0.256 (6.5)
Weight lbs/1000ft (kg/1000m):45 (66.97)
Operating Temperature:-40ºC to +135ºC
Minimum Bend Radius in (mm):1.3 (33.02)

Electrical Properties

Impedence Ω:100
Capacitance pF/ft (m):14.5 (47.57)
VOP:70%
DC Resistance Ω/1000ft (m):44.8 (146.98)
Dielectric Voltage Rating kV RMS:1.5

Attenuation (+25°C)

Frequency MHz dB/100 ft (m)
102.6 (8.5)
1008.2 (26.9)
25013.2 (43.3)
50019.3 (63.3)

Additional Jacket Colors for Special Applications

The jacket color depicted in the cable image above is a stock item. If your project requires a color for a specific application, GIGAFLIGHT can do that. Please Contact us for availability.

View Color & Application Table
ColorApplication
BlackSecure Data
BlueStandard
Translucent BlueStandard
Red Secure Data
Olive Drab Covert Subdued
OrangeFlight Test Data
WhiteLaser Markable

All values nominal unless noted.

GigaFlight’s aerospace cables are designed to be resistant to Skydrol, will meet requirements of RoHS & REACH, & meets Federal Aviation Regulations 14 CFR part 25.869 (a)(4), Appendix F part I (a)(3).

Compare GIGAFLIGHT Cables

GIGAFLIGHT P/NPIC P/NCarlisle P/NOther P/N
GF826A-H6A -- -- P542810**

*Identical alternative: GIGAFLIGHT’s product is identical to another as far as materials, physical, and electrical characteristics.

**Suitable alternative: GIGAFLIGHT’s product is comparable with slight variances. Please contact us to discuss your application.
