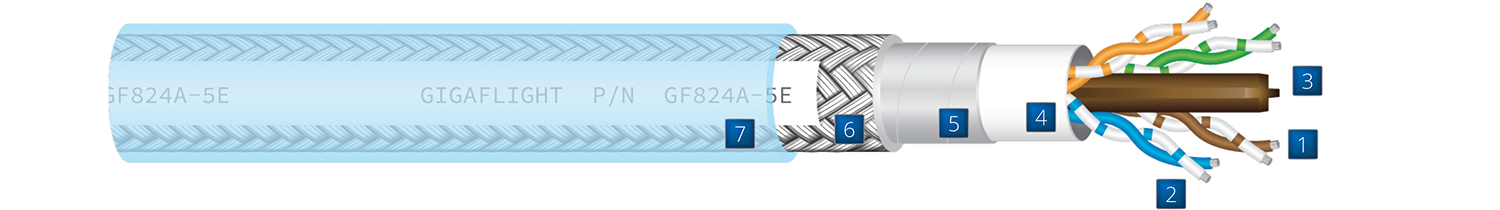

Cable construction drawing detailing components of GF824A-5E CAT5E Aerospace Ethernet Cable View Cable Construction
  1. Conductor: 24 AWG Stranded, Silver-plated Copper
  2. Insulation: Solid, High-temp Fluoropolymer
    1. Color Codes: Pair 1: Blue, White/Blue; Pair 2: Orange, White/Orange
    2. Pair 3: Green, White/Green; Pair 4: Brown, White/Brown
  3. Spline: Foamed, High-temp Fluoropolymer
  4. Binder: PTFE Tape
  5. Shield 1: Composite Foil
  6. Shield 2: 38 AWG Silver-plated Copper Braid
  7. Jacket: Translucent Blue Fluoropolymer

GF824A-5E AEROSPACE ETHERNET CABLE

Download Print PDF  Connectors  Burn Test  Cross Reference  ASTM E595 Results

1000BASE-T Gb 4-PAIR ETHERNET CABLE

The GF824A-5E is designed to deliver 1000Base-T Gigabit performance in accordance to ANSI/TIA-568-C.2 up to 268ft. The GF824A-5E is an identical alternative to PIC Wire E50824. With a 100% foil and a 95% round wire braided shield, this design provides ample protection against EMI in the vast majority of applications. This product is sold in bulk or CAT5E tested assemblies. Please contact GIGAFLIGHT for a quote.

If your project requires a specific jacket color that is called out in the jacket color table, please contact us for availability.

Compare GF824A-5E with E50824

Contact/RFQ

Environmental & Mechanical Properties

Shield Coverage:100% (Foil), 95% (Braid)
Outer Diameter in (mm):0.27 (6.86)
Weight lbs/1000ft (kg/1000m):45 (66.97)
Operating Temperature:-55°C to +200°C
Minimum Bend Radius in (mm):1.4 (35.56)

Electrical Properties

Impedence Ω:100
Capacitance pF/ft (m):14.5 (47.6)
VOP:70%
DC Resistance Ω/1000ft (m):28.5 (93.5)
Max Distance ft (m):268 (81.69)
Dielectric Voltage Rating kV RMS:1.5

Attenuation (+25°C)

Frequency MHz dB/100 ft (m)
102.2 (7.2)
1006.8 (22.3)

CAT6 Generic Assembly Drawing Templates

GFACAT6-350-XXX T568A CAT 6 RJ45 Straight Plug to Plug

XXX represents the length of the assembly in inches.

Additional Jacket Colors for Special Applications

Part NumberColorApplication
GF824A-5E Translucent BlueStandard
GF824A-5E-0 BlackSecure Data (Call for Availability)
GF824A-5E-1 WhiteLaser Markable
GF824A-5E-2 RedSecure Data (Call for Availability)
GF824A-5E-3 OrangeFlight Test Data (Call for Availability)

All values nominal unless noted.

GigaFlight’s aerospace cables are designed to be resistant to Skydrol, will meet requirements of RoHS & REACH, & meets Federal Aviation Regulations 14 CFR part 25.869 (a)(4), Appendix F part I (a)(3).

GF824A-5E Connectors

RJ45 Straight Plug

Ruggedized RJ45 Straight Plug, T568A
GFSC-2007
Ruggedized RJ45 Straight Plug, T568B
GFSC-2021
CAT 6A Shielded RJ45 Straight Plug
GFSC-2029

RJ45 Right Angle Plug

Ruggedized RJ45 Right Angle Plug, T568A
GFSC-2008
Ruggedized RJ45 Right Angle Plug, T568B
GFSC-2022

Compare GIGAFLIGHT Cables

GIGAFLIGHT P/NPIC P/NCarlisle P/N
GF824A-5E E50824* --

*Identical alternative: GIGAFLIGHT’s product is identical to another as far as materials, physical, and electrical characteristics.

**Suitable alternative: GIGAFLIGHT’s product is comparable with slight variances. Please contact us to discuss your application.
