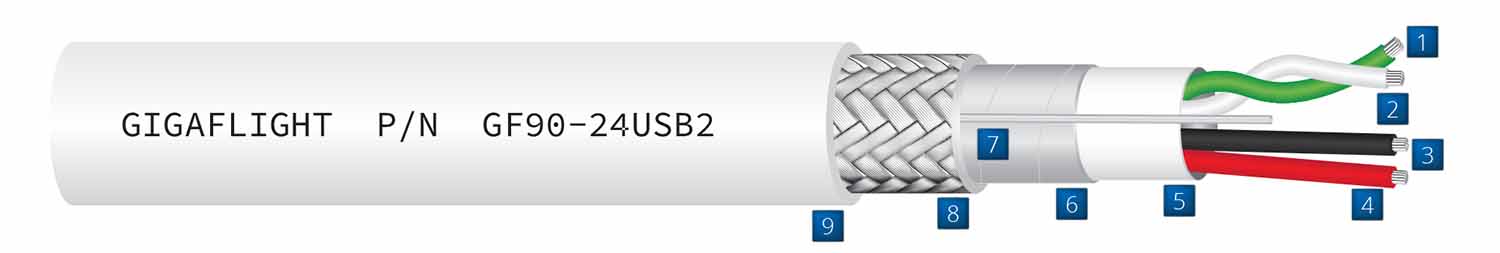

Cable construction drawing detailing components of GF90-24USB2 Aerospace Grade USB 2.0 data cable View Cable Construction

Data Pair

  1. Conductors: 24 AWG Stranded Silver-plated HSCA
  2. Insulation: Foamed, High-temp Fluoropolymer
    1. Color Code: Green, White

Power Wires

  1. Conductors: 22 AWG Stranded, Silver-plated Copper
  2. Insulation: Solid, High-temp FEP
    1. Color Code: Red, Black
  3. Binder: PTFE Tape
  4. Inner Shield: Composite Foil
  5. Drain Wire: 28 AWG Stranded, Tin-plated Copper
  6. Outer Shield: 38 AWG Tin-plated Copper Braid
  7. Jacket: White, Laser-markable Tefzel

GF90-24USB2 AEROSPACE GRADE USB 2.0

Download Print PDF  Connectors  Burn Test  Cross Reference

USB 2.0 DATA CABLE

The GF90-24USB2 is designed to meet the requirements of USB 2.0 applications up to 18ft. With a 100% foil and an 80% round wire braided shield, this design provides ample protection against EMI in the vast majority of applications. The GF90-24USB2 is a drop-in replacement for commonly used PIC USB2422 cable. Contact GIGAFLIGHT if you’re interested in having us build your USB cable assemblies.

If your project requires a specific jacket color that is called out in the jacket colors table, please contact us for availability.

Contact/RFQ

Environmental & Mechanical Properties

Outer Diameter in (mm):0.18 (4.57)
Weight lbs/1000ft (kg/1000m):23 (34.23)
Operating Temperature:-55°C to +150°C
Minimum Bend Radius in (mm):1.0 (25.4)

Electrical Properties

Impedence Ω:90
Capacitance (cond to cond) pF/ft (m):13.0 (42.7)
Capacitance (cond to shield) pF/ft (m):21.0 (68.9)
Time Delay ns/ft (m):1.39 (4.56)
DC Resistance (Power Wires) Ω/1000ft (m):15.2 (49.9)

Attenuation (+25°C)

Frequency MHz dB/1 ft (1 m)
962.19 (7.2)
2003.2 (10.5)
4004.85 (15.9)

USB 2.0 Generic Assembly Drawing Templates

GFA-USB2AA-231-XXX USB 2.0 A Plug to A Plug
GFA-USB2AB-232-XXX USB 2.0 A Plug to B Plug
GFA-USB2A-233-XXX USB 2.0 A Plug (one side only)

The XXX in the part number is the length of the assembly in inches.

Additional Jacket Colors for Special Applications

The jacket color depicted in the cable image above is a stock item. If your project requires a color for a specific application, GIGAFLIGHT can do that. Please Contact us for availability.

View Color & Application Table
ColorApplication
BlackSecure Data
BlueStandard
Translucent BlueStandard
Red Secure Data
Olive Drab Covert Subdued
OrangeFlight Test Data
WhiteLaser Markable

All values nominal unless noted.

GigaFlight’s aerospace cables are designed to be resistant to Skydrol, will meet requirements of RoHS & REACH, & meets Federal Aviation Regulations 14 CFR part 25.869 (a)(4), Appendix F part I (a)(3).

GF90-24USB2 Connectors

USB 2.0 A Straight Plug

USB 2.0 A Plug
GFSC-2010

USB 2.0 B Straight Plug

USB 2.0 B Plug
GFSC-2011

Compare GIGAFLIGHT Cables

GIGAFLIGHT P/NPIC P/NCarlisle P/N
GF90-24USB2 USB2422* --

*Identical alternative: GIGAFLIGHT’s product is identical to another as far as materials, physical, and electrical characteristics.

**Suitable alternative: GIGAFLIGHT’s product is comparable with slight variances. Please contact us to discuss your application.
