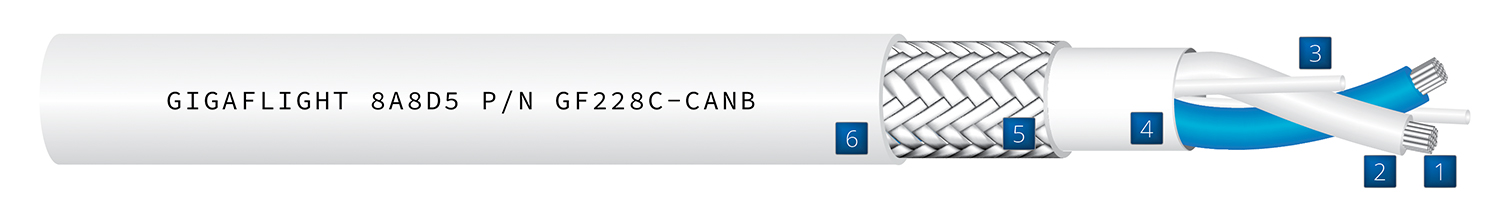

Conductors: 28 AWG Stranded, Silver-plated HSCA
Insulation: Solid, High-temp Fluoropolymer
1. Color Code: Blue, White
Filler: FEP
Binder: PTFE Tape
Shield: 38 AWG Silver-plated Copper Braid (95% Min Coverage)
Jacket: White, Laser-markable Tefzel

GF228C-CANB 120 OHM, 28AWG CAN BUS CABLE

Download Print PDF Cross Reference

INNOVATIVELY DESIGNED CAN BUS

The GF228C-CANB is an impedance controlled, Aerospace-grade CAN Bus cable designed for applications where weight savings and flexibility are paramount. This 120 ohm cable features two 28AWG stranded, silver-plated, high-strength copper alloy conductors, high-temperature foamed fluoropolymer insulation, a 95% silver-plated copper shield, and a laser-markable Tefzel jacket.

The GF228C-CANB provides ample EMI protection and consistent performance for Aerospace, UAV, and Motorsport applications, as well as mobile communications and control devices and equipment.

Contact/RFQ

Environmental & Mechanical Properties

Outer Diameter in (mm):0.142 (3.56)

Weight lbs/1000ft (kg/1000m):15.0 (22.32)

Operating Temperature:-55°C to +200°C

Minimum Bend Radius in (mm):0.7 (17.78)

Electrical Properties

Impedence Ω:120

Capacitance pF/ft (m):13.5 (42.29)

VOP:70%

DC Resistance Ω/1000ft (m):62.0 (203.4)

Dielectric Voltage Rating kV RMS:0.9

Attenuation (+25°C)

Frequency MHz dB/100 ft (m)

102.2 (7.2)

1007.0 (22.9)

Additional Jacket Colors for Special Applications

The jacket color depicted in the cable image above is a stock item. If your project requires a color for a specific application, GIGAFLIGHT can do that. Please Contact us for availability.

View Color & Application Table

ColorApplication

BlackSecure Data

BlueStandard

Translucent BlueStandard

Red Secure Data

Olive Drab Covert Subdued

OrangeFlight Test Data

WhiteLaser Markable

All values nominal unless noted.

GigaFlight’s aerospace cables are designed to be resistant to Skydrol, will meet requirements of RoHS & REACH, & meets Federal Aviation Regulations 14 CFR part 25.869 (a)(4), Amendment 25-113, Appendix F part I (a)(3).

Compare GIGAFLIGHT Cables

GIGAFLIGHT P/NPIC P/NCarlisle P/NOther P/N

GF228C-CANB -- -- --

*Identical alternative: GIGAFLIGHT’s product is identical to another as far as materials, physical, and electrical characteristics.

**Suitable alternative: GIGAFLIGHT’s product is comparable with slight variances. Please contact us to discuss your application.
