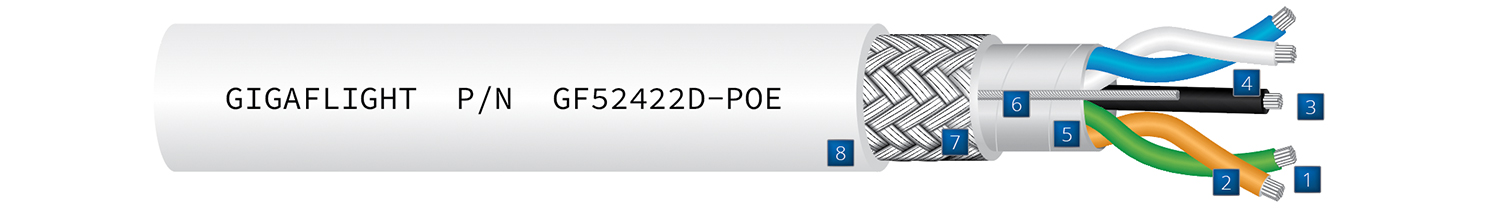

Conductor: 24 AWG Stranded, Tin-plated Copper
Insulation: Foamed, High-temp Fluoropolymer
1. Color Codes: Pair 1: Blue/White;
2. Pair 2: Orange/Green
Conductor: 22 AWG Stranded, Tin-plated Copper
Insulation: Solid, High-temp Fluoropolymer
1. Color Codes: Power Conductor: Black
Inner Shield: Composite Foil
Drain Wire: 26 AWG Stranded, Tin-plated Copper
Outer Shield: 38 AWG Tin-plated Copper Braid
Jacket: White, Laser-markable Tefzel

GF52422D-POE Power over Ethernet (PoE)

Download Print PDF Burn Test Cross Reference

POWER OVER ETHERNET (PoE) CAT 5e CABLE

GIGAFLIGHT’s GF52422D-POE 100Ω cable transmits both data and power along a shielded, 24 AWG twisted-pair Ethernet cable combined with one 22 AWG power conductor. Designed as a high-reliability PoE optimized for demanding applications and constructed of sturdy, laser-markable Tefzel—similar to the GF62422D-POE with one less power wire. GIGAFLIGHT’s GF52422D-POE meets and exceeds CAT5e channel requirements.

Power over Ethernet (PoE) cables are commonly used for cabin management and IFE systems on aircraft, and GIGAFLIGHT is giving users options – maximum performance in a lightweight, flexible cable.

Contact/RFQ

Environmental & Mechanical Properties

Outer Diameter in (mm):0.21 (5.33)

Weight lbs/1000ft (kg/1000m):38 (56.55)

Operating Temperature:-55°C to +150°C

Minimum Bend Radius in (mm):1.0 (25.4)

Electrical Properties

Impedence Ω:100

Capacitance pF/ft (m):13 (42.65)

VOP:80%

DC Resistance Data Pair Ω/1000ft (m):26.2 (85.95)

DC Resistance Power Pair Ω/1000ft (m):16.2 (53.15)

Dielectric Voltage Rating Data Pair kV RMS:0.9

Dielectric Voltage Rating Power Pair kV RMS:0.6

Attenuation (+25°C)

Frequency MHz dB/100 ft (m)

102.3 (7.5)

1006.8 (22.3)

Additional Jacket Colors for Special Applications

The jacket color depicted in the cable image above is a stock item. If your project requires a color for a specific application, GIGAFLIGHT can do that. Please Contact us for availability.

View Color & Application Table

ColorApplication

BlackSecure Data

BlueStandard

Translucent BlueStandard

Red Secure Data

Olive Drab Covert Subdued

OrangeFlight Test Data

WhiteLaser Markable

All values nominal unless noted.

GigaFlight’s aerospace cables are designed to be resistant to Skydrol, will meet requirements of RoHS & REACH, & meets Federal Aviation Regulations 14 CFR part 25.869 (a)(4), Appendix F part I (a)(3).

Compare GIGAFLIGHT Cables

GIGAFLIGHT P/NPIC P/NCarlisle P/N

GF52422D-POE -- --

*Identical alternative: GIGAFLIGHT’s product is identical to another as far as materials, physical, and electrical characteristics.

**Suitable alternative: GIGAFLIGHT’s product is comparable with slight variances. Please contact us to discuss your application.
