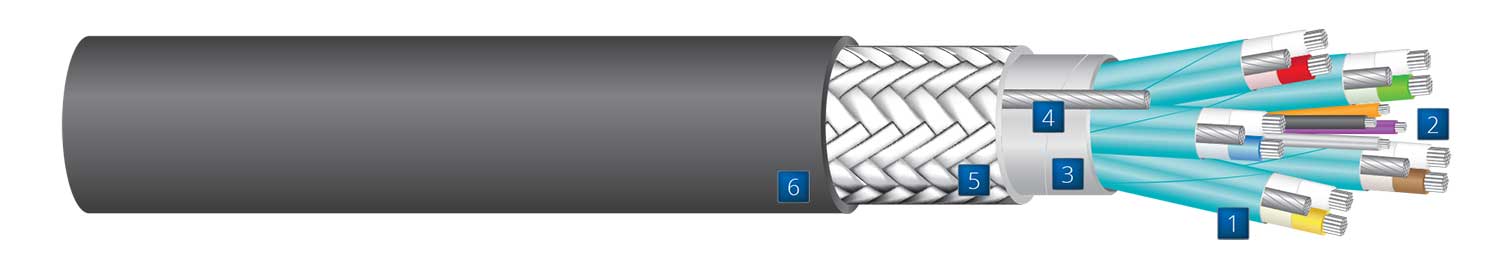

Cable construction drawing detailing components of GF100-26HDMI Aerospace Grade high-speed 2.0 HDMI Cable View Cable Construction

Five Shielded, Twisted Pairs

  1. Conductor: 26 AWG Stranded, Silver-plated HSCA
    1. Inner Insulation: Solid, High-temp Fluoropolymer
    2. Outer Insulation: Foamed, High-temp Fluoropolymer
    3. Color Code: Pair 1: Blue, White; Pair 2: Red, White;
    4. Pair 3: Green, White; Pair 4: Brown, White;
    5. Pair 5: Yellow, White
    6. Binder: Clear Mylar
    7. Drain Wire: 26 AWG Tin-plated Copper
    8. Shield: Composite Foil

Four Discrete Wires

  1. Conductor: 26 AWG Tin-plated Copper
    1. Insulation: Solid, High-temp Fluoropolymer
    2. Color Code: Gray, Orange, Violet, Black
  2. Shield 1: Composite Foil
  3. Drain Wire: 26 AWG Tin-plated Copper
  4. Shield 2: 38 AWG Tin-plated Copper Braid
  5. Jacket: Black Fluoropolymer

GF100-26HDMI HIGH-DEFINITION MULTIMEDIA INTERFACE CABLE

Download Print PDF  Burn Test  Cross Reference

READILY AVAILABLE AEROSPACE GRADE HDMI

The GF100-26HDMI is an aerospace, high-speed 2.0 HDMI cable designed to support 4K p60/59, 12Gbps images up to 15 ft, as well as, 4K p30/24, 6Gbps and 1080p 60Hz up to 50 ft. This 26 AWG HDMI cable is backward compatible to all current features pertinent to the HDMI specifications.

GIGAFLIGHT offers custom assemblies and test reports for assemblies built using HDMI, DVI-D, and HD26 Pin D-Subs with a typical lead-time of 2–3 days. See the current HDMI generic drawing templates listed in the table below, and contact GIGAFLIGHT to discuss your assembly requirements.

Learn more about our HDMI Cable Assemblies

Contact/RFQ

Environmental & Mechanical Properties

Outer Diameter in (mm):0.296 (7.52)
Weight lbs/1000ft (kg/1000m):76 (113.1)
Operating Temperature:-55°C to +150°C
Minimum Bend Radius in (mm):1.5 (38.1)

Electrical Properties

Impedence Ω:100
Capacitance pF/ft (m):14.5 (47.6)
VOP:75%
DC Resistance Ω/1000ft (m):43.9 (144.1)
DC Resistance (Shield) Ω/1000ft (m):13.3 (43.6)
Dielectric Voltage Rating kV RMS:1.5

Attenuation (+25°C)

Frequency MHz dB/1 ft (dB/5 m)
3000.15 (2.5)
8250.30 (5.0)
41251.22 (20.0)
51001.52 (25.0)

HDMI Generic Assembly Drawing Templates

GFAHDMI-300-XXX HDMI Plug to HDMI Plug
GFAHDMI-301-XXX HDMI Plug to DVI-D Plug
GFAHDMI-302-XXX HDMI Plug to HD26 Pin D-Sub Plug
GFAHDMI-303-XXX DVI-D Plug to DVI-I F/F Coupler
GFAHDMI-304-XXX DVI-D Plug Assembly (one side only)
GFAHDMI-305-XXX DVI-D Plug to DVI-D Plug
GFAHDMI-306-XXX HDMI Plug Assembly (one side only)
GFAHDMI-307-XXX HD D-SUB 26 Male to DVI-D Male
GFAHDMI-311-XXX HDMI Plug to Male DVI-D Plug w/ Female DVI-I Coupler

The XXX in the part number is the length of the assembly in inches.

Additional Jacket Colors for Special Applications

The jacket color depicted in the cable image above is a stock item. If your project requires a color for a specific application, GIGAFLIGHT can do that. Please Contact us for availability.

View Color & Application Table
ColorApplication
ClearStandard
WhiteLaser Markable
OrangeFlight Test Data

All values nominal unless noted.

GigaFlight’s aerospace cables are designed to be resistant to Skydrol, will meet requirements of RoHS & REACH, & meets Federal Aviation Regulations 14 CFR part 25.869 (a)(4), Appendix F part I (a)(3).

Compare GIGAFLIGHT Cables

GIGAFLIGHT P/NPIC P/NCarlisle P/N
GF100-26HDMI -- --

*Identical alternative: GIGAFLIGHT’s product is identical to another as far as materials, physical, and electrical characteristics.

**Suitable alternative: GIGAFLIGHT’s product is comparable with slight variances. Please contact us to discuss your application.
