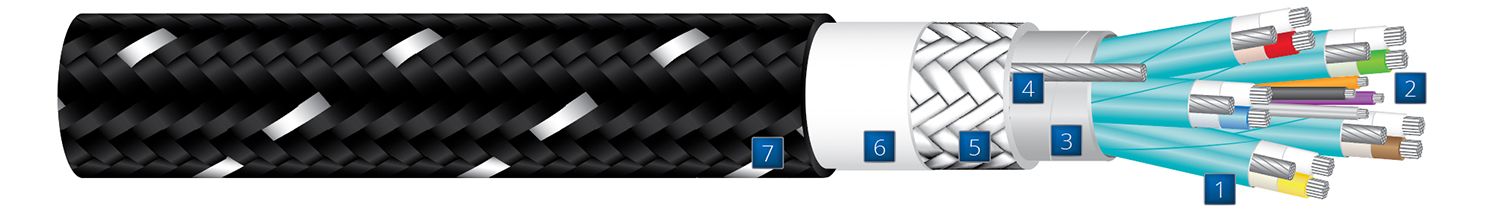

Drawing of gf100-26hdmi-nx-cable View Cable Construction

Five Shielded, Twisted Pairs

  1. Conductor: 26 AWG Stranded, Silver-plated HSCA
    1. Inner Insulation: Solid, High-temp Fluoropolymer
    2. Outer Insulation: Foamed, High-temp Fluoropolymer
    3. Color Code: Pair 1: Blue, White; Pair 2: Red, White;
    4. Pair 3: Green, White; Pair 4: Brown, White;
    5. Pair 5: Yellow, White
    6. Binder: Clear Mylar
    7. Drain Wire: 26 AWG Tin-plated Copper
    8. Shield: Composite Foil

Four Discrete Wires

  1. Conductor: 26 AWG Tin-plated Copper
    1. Insulation: Solid, High-temp Fluoropolymer
    2. Color Code: Gray, Orange, Violet, Black
  2. Shield 1: Composite Foil
  3. Drain Wire: 26 AWG Tin-plated Copper
  4. Shield 2: 38 AWG Tin-plated Copper
  5. Binder: PTFE Tape
  6. Jacket: Nomex

GF100-26HDMI-NX HIGH-DEFINITION MULTIMEDIA INTERFACE CABLE

Download Print PDF  Burn Test  Cross Reference

HIGHLY FLEXIBLE AEROSPACE-GRADE HDMI

The GF100-26HDMI-NX is an aerospace, high-speed 2.0 HDMI cable designed to support 4K p60/59, 12Gbps images up to 15 ft, as well as, 4K p30/24, 6Gbps and 1080p 60Hz up to 50 ft. This cable features a Nomex jacket for exceptional flexibility, heat and flame-resistant protection intended for interior cabin use only.

GIGAFLIGHT offers custom assemblies and test reports for assemblies built using HDMI, DVI-D, and HD26 Pin D-Subs with a typical lead-time of 2–3 days. See the current HDMI generic drawing templates listed in the table and contact GIGAFLIGHT to discuss your assembly requirements.

Learn more about the GF100-26HDMI-NX

Contact/RFQ

Environmental & Mechanical Properties

Outer Diameter in (mm):0.285 (7.24)
Weight lbs/1000ft (kg/1000m):66 (101.19)
Operating Temperature:-55°C to +150°C
Minimum Bend Radius in (mm):1.43 (36.32)

Electrical Properties

Impedence Ω:100
Capacitance pF/ft (m):14.5 (47.57)
VOP:75%
DC Resistance Ω/1000ft (m):43.9 (144.13)
DC Resistance (Shield) Ω/1000ft (m):13.3 (43.64)
Dielectric Voltage Rating kV RMS:1.5

Attenuation (+25°C)

Frequency MHz dB/1 ft (dB/5 m)
3000.15 (2.5)
8250.30 (5.0)
41251.22 (20.0)
51001.52 (25.0)

HDMI Generic Assembly Drawing Templates

GFAHDMI-500-XXX Flexible HDMI Plug to HDMI Plug
GFAHDMI-501-XXX Flexible HDMI Plug to DVI-D Plug
GFAHDMI-502-XXX Flexible HDMI Plug to HD26 Pin D-Sub Plug

The XXX in the part number is the length of the assembly in inches.

Additional Jacket Colors for Special Applications

The jacket color depicted in the cable image above is a stock item. If your project requires a color for a specific application, GIGAFLIGHT can do that. Please Contact us for availability.

View Color & Application Table
ColorApplication
ClearStandard
WhiteLaser Markable
OrangeFlight Test Data

All values nominal unless noted.

GIGAFLIGHT’s aerospace cables will meet requirements of RoHS & REACH, & meets Federal Aviation Regulations 14 CFR part 25.869 (a)(4), Appendix F part I (a)(3).

Compare GIGAFLIGHT Cables

GIGAFLIGHT P/NPIC P/NCarlisle P/N
GF100-26HDMI-NX -- --

*Identical alternative: GIGAFLIGHT’s product is identical to another as far as materials, physical, and electrical characteristics.

**Suitable alternative: GIGAFLIGHT’s product is comparable with slight variances. Please contact us to discuss your application.
