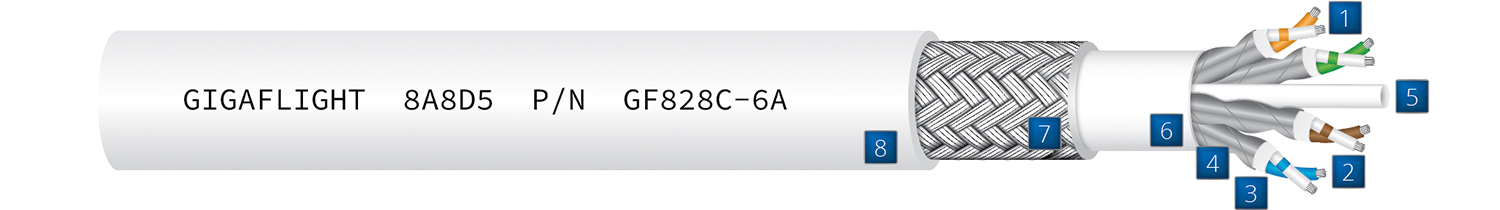

GF828C-6A Cable Construction Drawing View Cable Construction
  1. Conductor: 28 AWG Stranded, Silver-plated HSCA
  2. Insulation: Solid, High-temp Fluoropolymer
    1. Color Codes: Pair 1: Blue, White/Blue; Pair 2: Orange, White/Orange;
      Pair 3: Green, White/Green; Pair 4: Brown, White/Brown
  3. Binder: PTFE Tape (each pair)
  4. Pair Shield: Composite Foil
  5. Filler: Solid, High-temp Fluoropolymer
  6. Binder: PTFE Tape
  7. Shield 2: 40 AWG, Silver-plated Copper Braid
  8. Jacket: White, Laser-markable ETFE

GF828C-6A CATEGORY 6A ETHERNET CABLE

Download Print PDF  Burn Test  Cross Reference

CAT6A 10Gb ETHERNET CABLE

The GF828C-6A is designed to deliver 10 Gigabit performance in accordance to ANSI/TIA 568 C.2 Category 6A, supporting distances up to 148ft (45m). The GF828C-6A is a suitable electrical alternative to Gore’s RCN9034-28, making it a versatile choice for demanding applications.

For higher temperature requirements, the GF828C-6A features a silver-plated outer braid, allowing it to withstand operating temperatures up to +200ºC. This cable is available in bulk or as CAT6A-tested assemblies, ensuring flexibility for various project needs.

If your application requires a specific jacket color listed in our jacket color table, please contact GIGAFLIGHT for availability and pricing.

Contact/RFQ

Environmental & Mechanical Properties

Outer Diameter in (mm):0.222 (5.64)
Weight lbs/1000ft (kg/1000m):29.0 (43.16)
Operating Temperature:-55°C to +200°C
Minimum Bend Radius in (mm):0.90 (22.86)

Electrical Properties

Impedence Ω:100
Capacitance pF/ft (m):13 (42.65)
VOP:70%
DC Resistance Ω/1000ft (m):28.5 (93.5)
Dielectric Voltage Rating kV RMS:1.5

Attenuation (+25°C)

Frequency MHz dB/100 ft (m)
104.0 (13.1)
10012.9 (42.5)
25021.1 (69.1)
50030.7 (100.7)

Additional Jacket Colors for Special Applications

The jacket color depicted in the cable image above is a stock item. If your project requires a color for a specific application, GIGAFLIGHT can do that. Please Contact us for availability.

View Color & Application Table
ColorApplication
BlackSecure Data
BlueStandard
Translucent BlueStandard
Red Secure Data
Olive Drab Covert Subdued
OrangeFlight Test Data
WhiteLaser Markable

All values nominal unless noted.

GigaFlight’s aerospace cables are designed to be resistant to Skydrol, will meet requirements of RoHS & REACH, & meets Federal Aviation Regulations 14 CFR part 25.869 (a)(4), Appendix F part I (a)(3).

Compare GIGAFLIGHT Cables

GIGAFLIGHT P/NPIC P/NCarlisle P/N
GF828C-6A -- --

*Identical alternative: GIGAFLIGHT’s product is identical to another as far as materials, physical, and electrical characteristics.

**Suitable alternative: GIGAFLIGHT’s product is comparable with slight variances. Please contact us to discuss your application.

Contact GIGAFLIGHT for a quote or more information.
