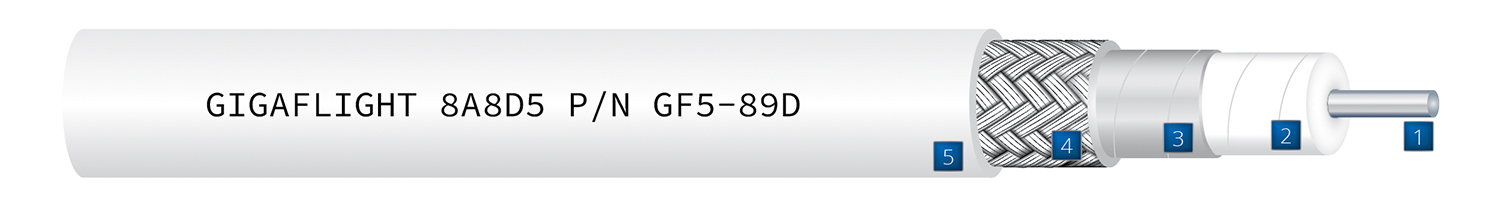

- Center Conductor: 16 AWG Solid Bare Copper Wire
- Dielectric: Low-density PTFE
- Inner Shield: Composite Foil
- Outer Shield: Tin-plated Copper Wire Braid
- Jacket: White, Laser-markable Tefzel
GF5-89D LOW-LOSS HIGH-PERFORMANCE COAX
GIVING YOU OPTIONS
GIGAFLIGHT’s 50Ω coaxial cable, GF5-89D, is designed as a suitable alternative for Carlisle’s 421601. Featuring a laser-markable jacket and constructed with similar materials and electrical properties, it simplifies the design approval process. Additionally, the GF5-89D is compatible with XXX922 series connectors, ensuring identical electrical characteristics, strip dimensions, and tooling requirements.
Environmental & Mechanical Properties
Electrical Properties
Attenuation (+25°C)
Additional Jacket Colors for Special Applications
The jacket color depicted in the cable image above is a stock item. If your project requires a color for a specific application, GIGAFLIGHT can do that. Please Contact us for availability.
View Color & Application TableAll values nominal unless noted.
All tests performed in accordance with MIL-DTL-17
GigaFlight’s aerospace cables are designed to be resistant to Skydrol, will meet requirements of RoHS & REACH, & meets Federal Aviation Regulations 14 CFR part 25.869 (a)(4), Appendix F part I (a)(3).
GF5-89D Connectors
TNC
TNC Straight
TNC 90°
TNC Bulkhead
TNC Bulkhead
C
C 90°
Size 5
ARINC 600
Size 1
ARINC 600
Compare GIGAFLIGHT Cables
*Identical alternative: GIGAFLIGHT’s product is identical to another as far as materials, physical, and electrical characteristics.
**Suitable alternative: GIGAFLIGHT’s product is comparable with slight variances. Please contact us to discuss your application.
