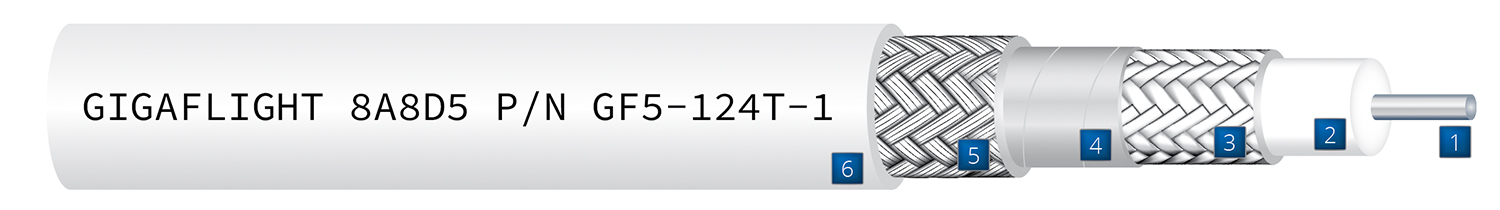

- Center Conductor: 19 AWG Stranded, Silver-plated Copper Covered Steel
- Dielectric: Solid, High-temp Fluoropolymer
- Inner Shield: Silver-plated Copper Flat Strip Braid
- Interlayer: Composite Foil
- Outer Shield: 36 AWG Silver-plated Copper Braid
- Jacket: White, Laser-markable Tefzel
GF5-124T-1 LOW-LOSS HIGH-PERFORMANCE COAX
GIVING YOU OPTIONS
GIGAFLIGHT’s 50Ω coaxial cable, GF5-124T-1, is the next-generation alternative to our GF5-124T, Carlisle 311901, and PIC S44193. Built with comparable materials and matching electrical specifications, this cable simplifies your design approvals. The connectors paired with the GF5-124T-1 are identical to the GF5-124T and the XXX722 series connectors, ensuring compatibility with the same electrical characteristics, strip dimensions, and tooling.
The GF5-124T-1 also features a white, laser-markable jacket, with a 10% smaller outer diameter and a 12% weight reduction compared to the GF5-124T. Learn more about GF5-124T-1 as an alternative here.
Contact/RFQEnvironmental & Mechanical Properties
Electrical Properties
Attenuation (+25°C)
Additional Jacket Colors for Special Applications
All values nominal unless noted.
All tests performed in accordance with MIL-DTL-17
GigaFlight’s aerospace cables are designed to be resistant to Skydrol, will meet requirements of RoHS & REACH, & meets Federal Aviation Regulations 14 CFR part 25.869 (a)(4), Appendix F part I (a)(3).
GF5-124T-1 Connectors
TNC
TNC Straight
TNC 90°
TNC Bulkhead
BNC
BNC Straight
BNC 90°
N
N Straight
N 90°
N Bulkhead
SMA
SMA Straight
SMA 90°
SMA Bulkhead
C
C 90°
Size 8
ARINC 600
Size 1
ARINC 600
Compare GIGAFLIGHT Cables
*Identical alternative: GIGAFLIGHT’s product is identical to another as far as materials, physical, and electrical characteristics.
**Suitable alternative: GIGAFLIGHT’s product is comparable with slight variances. Please contact us to discuss your application.
