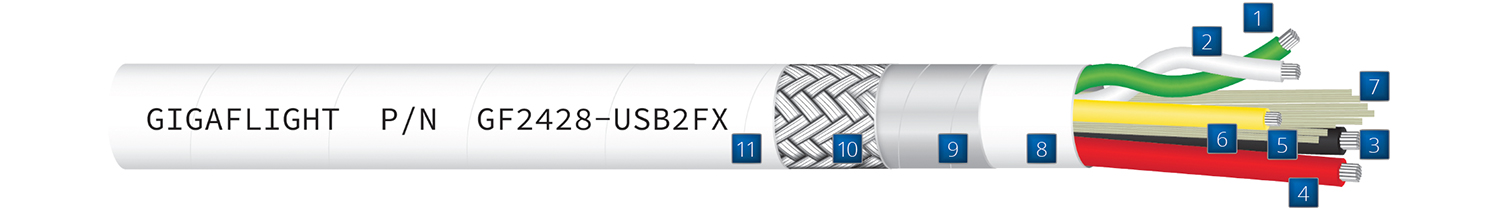

View Cable Construction

Data Pair

  1. Conductors: 28 AWG Silver-plated Copper
  2. Insulation: ePTFE/PTFE
    1. Color Code: Green, White

Power Wires

  1. Conductors: 24 AWG Silver-plated Copper
  2. Insulation: PI/PTFE
    1. Color Code: Red, Black

Discrete Wire

  1. Conductor: 28 AWG Silver-plated Copper
  2. Insulation: ePTFE/PTFE
    1. Color Code: Yellow
  3. Filler: Kevlar
  4. Binder: ePTFE Tape
  5. Shield 1: Composite Foil
  6. Shield 2: 40 AWG Silver-plated Copper Braid
  7. Jacket: White, Laser-markable Sintered PTFE Tape

GF2428-USB2FX AEROSPACE GRADE USB 2.0

Download Print PDF  Burn Test  Cross Reference

USB 2.0 DATA CABLE

GIGAFLIGHT’s new aerospace-grade USB-C cable, GF2428-USB2FX, is designed for high-speed charging in demanding environments. Engineered for durability in harsh aerospace conditions, these assemblies feature a flexible jacket and compact design for ease of use. They support USB 2.0 with 3A charging or 60W, with male and female connectors available. Our over-molding capability ensures a perfect fit for your specific application. 100W charging capabilities are currently in development.

Contact GIGAFLIGHT for more information on our USB-C charging cable assemblies.

Contact/RFQ

Environmental & Mechanical Properties

Outer Diameter in (mm):0.126 (3.2)
Weight lbs/1000ft (kg/1000m):15 (22.32)
Operating Temperature:-55°C to +200°C
Minimum Bend Radius in (mm):0.63 (16.0)

Electrical Properties

Impedence Ω:90
Capacitance pF/ft (m):15.5 (50.85)
Time Delay ns/ft (m):1.4 (4.59)
DC Resistance (Power Wires) Ω/1000ft (m):15.2 (49.9)
Dielectric Voltage Rating kV RMS:1.0

Attenuation (+25°C)

Frequency MHz dB/1 ft (1 m)
4000.24 (0.80)

Additional Jacket Colors for Special Applications

The jacket color depicted in the cable image above is a stock item. If your project requires a color for a specific application, GIGAFLIGHT can do that. Please Contact us for availability.

View Color & Application Table
ColorApplication
BlackSecure Data
BlueStandard
Translucent BlueStandard
Red Secure Data
Olive Drab Covert Subdued
OrangeFlight Test Data
WhiteLaser Markable

All values nominal unless noted.

GigaFlight’s aerospace cables are designed to be resistant to Skydrol, will meet requirements of RoHS & REACH, & meets Federal Aviation Regulations 14 CFR part 25.869 (a)(4), Appendix F part I (a)(3).

Compare GIGAFLIGHT Cables

GIGAFLIGHT P/NPIC P/NCarlisle P/N
GF2428-USB2FX -- --

*Identical alternative: GIGAFLIGHT’s product is identical to another as far as materials, physical, and electrical characteristics.

**Suitable alternative: GIGAFLIGHT’s product is comparable with slight variances. Please contact us to discuss your application.
