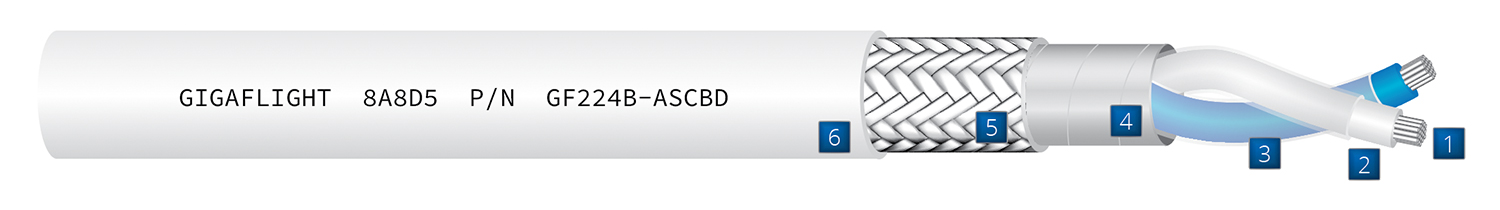

- Conductors: 24 AWG Stranded, Silver-plated HSCA
- Inner Insulation: Solid, High-temp Fluoropolymer
- Color Code: Blue, White
- Outer Insulation: Foamed, High-temp Fluoropolymer
- Color Code: White, White
- Inner Shield: Dual-sided Aluminum (50% overlap)
- Outer Shield: 38 AWG Tin-plated Copper Braid (90% min coverage)
- Jacket: White, Laser-markable Tefzel
GF224B-ASCBD 125 OHM DATA BUS CABLE
INNOVATIVELY DESIGNED DATA BUS
The GF224B-ASCBD is a laser-wire-markable, aerospace-grade Data Bus cable tailored for Honeywell ASCB Data Bus and Servo CAN Bus applications in the Primus EPIC/APEX avionics system.
This 125-ohm Twinax cable features a unique dual-wall insulation design to address contact extraction challenges caused by the thicker insulation needed for 125-ohm impedance. The inner layer is a high-temp MFA with a diameter smaller than the contact OD, making contact insertion and removal seamless. The outer layer is a foamed FEP that maintains the 125-ohm controlled impedance.
This innovative construction eliminates common issues like insulation creep back, while a double-sided aluminum shield with 50% overlap ensures robust performance in demanding environments.
Please note, GF224B-ASCBD is replacing the now discontinued GF125-24ASCB-D.
Contact/RFQ Environmental & Mechanical Properties
Shield Coverage:100% (Foil), 90% (Braid)
Outer Diameter in (mm):0.2 (5.08)
Weight lbs/1000ft (kg/1000m):23 (34.23)
Operating Temperature:-55°C to +150°C
Minimum Bend Radius in (mm):1.0 (25.4)
Electrical Properties
Impedence Ω:125
Capacitance
pF/ft (m):11.0 (36.09)
VOP:75%
DC Resistance
Ω/1000ft (m):27.5 (90.22)
Dielectric Voltage Rating kV RMS:1.5
Attenuation (+25°C)
Frequency MHz
dB/100 ft (m)
102.0 (6.6)
1006.3 (20.7)
Additional Jacket Colors for Special Applications
The jacket color depicted in the cable image above is a stock item. If your project requires a color for a specific application, GIGAFLIGHT can do that. Please Contact us for availability.
View Color & Application TableColorApplication
BlackSecure Data
BlueStandard
Translucent BlueStandard
Red Secure Data
Olive Drab Covert Subdued
OrangeFlight Test Data
WhiteLaser Markable
All values nominal unless noted.
GigaFlight’s aerospace cables are designed to be resistant to Skydrol, will meet requirements of RoHS & REACH, & meets Federal Aviation Regulations 14 CFR part 25.869 (a)(4), Amendment 25-113, Appendix F part I (a)(3).
Compare GIGAFLIGHT Cables
GIGAFLIGHT P/NPIC P/NCarlisle P/N
GF224B-ASCBD
T12243*
322402**, 522402**
*Identical alternative: GIGAFLIGHT’s product is identical to another as far as materials, physical, and electrical characteristics.
**Suitable alternative: GIGAFLIGHT’s product is comparable with slight variances. Please contact us to discuss your application.
