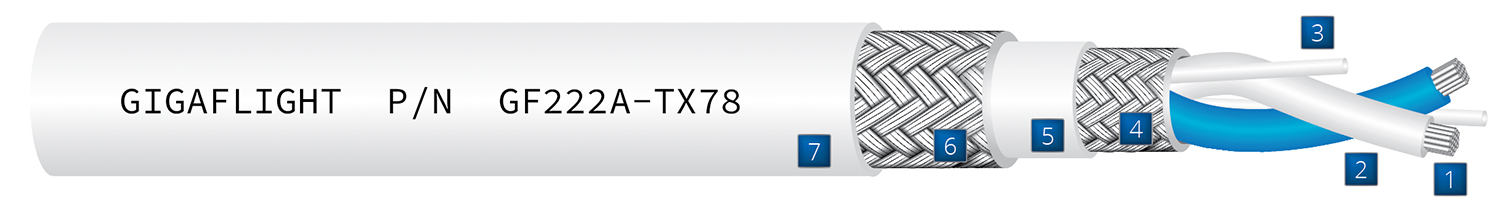

GF222A-TX78 78Ω High-Temp Quadraxial Aerospace Cable

Conductors: 22 AWG Stranded, Silver-plated Copper
Inner Insulation: Solid, High-temp Fluoropolymer
1. Color Code: White, Blue
Filler: FEP
Inner Shield: 36 AWG Silver-plated Copper Braid
Inner Jacket: White Fluoropolymer
Outer Shield: 36 AWG Silver-plated Copper Braid (Triaxial)
Jacket: White, Laser-markable Tefzel

GF222A-TX78 78 Ohm Quadraxial

Download Print PDF Burn Test Cross Reference

LASER-MARKABLE, HIGH-TEMP QUADRAX

GIGAFLIGHT’s GF222A-TX78 78Ω, high-temperature Quadraxial cable is designed as a suitable alternative to PIC’s D5102QX, with the added advantage of a laser-markable, Tefzel jacket. This cable is used as a 1553 data bus connection from radar sensor to display and symbol generators. The isolated, dual-shield design—similar to a triaxial cable—makes this cable an excellent fit for use in applications where vulnerability to EMI and noise are an issue.

The GF222A-TX78 is available in different color options, contact GIGAFLIGHT for more information.

Contact/RFQ

Environmental & Mechanical Properties

Outer Diameter in (mm):0.23 (5.84)

Weight lbs/1000ft (kg/1000m):50 (74.41)

Operating Temperature:-55°C to +200°C

Minimum Bend Radius in (mm):1.15 (29.21)

Electrical Properties

Impedence Ω:78

Capacitance pF/ft (m):18.6 (61.02)

VOP:70%

DC Resistance Ω/1000ft (m):15.2 (49.9)

Dielectric Voltage Rating kV RMS:1.5

Attenuation (+25°C)

Frequency MHz dB/100 ft (m)

103.0 (9.8)

Additional Jacket Colors for Special Applications

Part NumberColorApplication

GF222A-TX78 WhiteLaser Markable

GF222A-TX78-3 OrangeFlight Test Data

All values nominal unless noted.

GigaFlight’s aerospace cables are designed to be resistant to Skydrol, will meet requirements of RoHS & REACH, & meets Federal Aviation Regulations 14 CFR part 25.869 (a)(4), Appendix F part I (a)(3).

Compare GIGAFLIGHT Cables

GIGAFLIGHT P/NPIC P/NCarlisle P/N

GF222A-TX78 D5102QX** --

*Identical alternative: GIGAFLIGHT’s product is identical to another as far as materials, physical, and electrical characteristics.

**Suitable alternative: GIGAFLIGHT’s product is comparable with slight variances. Please contact us to discuss your application.
